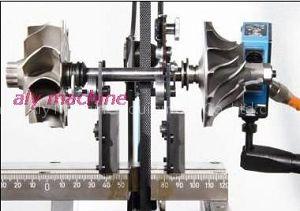

Turbocharger balancing machine

Horizontal balancing machine, soft-bearing, belt drive,

to balance the rotors weighted between 0.1kg to 16 kg.

Balancing mechanical parts (can put on a table) Measuring

system balancing software computer display.

Specification:

Rotor weight range: 0.1 ~ 16 kg

Max. Rotor diameter : 250 mm

Distance of two pedestals: 50 ~ 300 mm (standard and special roller carriage)

Diameter of journal: 6 ~20 mm

Balancing speed: belt drive < 100,000 rpm; self drive < 25000rpm
