Turbocharger balancer is a Health & Medical product. Key specs — Origin: China.
Product Description

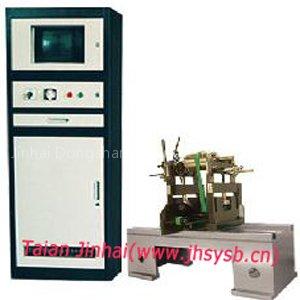

Horizontal balancing machine, soft-bearing, belt drive,
Balancing mechanical parts (can put on a table) Measuring
system balancing software computer display.
It can be manufactured according to your requirements
MODEL
RYQ-3
Max. mass of workpiece(kg): 0.1-3
Max.diameter of workpiece(mm):350
Distance between two bearing support(mm):30-450
Max.rotor Diameter(mm): 3-22
Balanncing speed min(r/mm): 400-10000
Min.achievable residual balance(Less than or equal to 0.5
Unbalance reduction ratio(%): Be equal or greater than 90
Drive power(kw): 0.09
RYQ-10
Max. mass of workpiece(kg):1-10
Max.diameter of workpiece(mm):500
Distance between two bearing support(mm):30-600
Max.rotor Diameter(mm): 5-60
Balanncing speed min(r/mm): 400-10000
Min.achievable residual balance(Less than or equal to 0.5
Unbalance reduction ratio(%): Be equal or greater than 90
Drive power(kw): 0.18
YYQ-5
Max. mass of workpiece(kg): 0.1-5
Max.diameter of workpiece(mm):400
Distance between two bearing support(mm):50-600
Max.rotor Diameter(mm): 3-40
Balanncing speed min(r/mm): 400-5000
Min.achievable residual balance(Less than or equal to 0.5
Unbalance reduction ratio(%): Be equal or greater than 90
Drive power(kw): 0.09
YYQ-16
Max. mass of workpiece(kg): 0.3-16
Max.diameter of workpiece(mm):500
Distance between two bearing support(mm):60-600
Max.rotor Diameter(mm): 5-40
Balanncing speed min(r/mm): 400-5000
Min.achievable residual balance(Less than or equal to 0.5
Unbalance reduction ratio(%): Be equal or greater than 90
Drive power(kw): 0.18
YYQ-50(A)
Max. mass of workpiece(kg):1-50
Max.diameter of workpiece(mm):900
Distance between two bearing support(mm):60-800
Max.rotor Diameter(mm): 8-70
Balanncing speed min(r/mm): 300-5000
(Neutral speed regulating)
Min.achievable residual balance(Less than or equal to 0.5
Unbalance reduction ratio(%): Be equal or greater than 90
Drive power(kw): 0.75(A:0.75)
YYQ-100(A)
Max. mass of workpiece(kg):2-100
Max.diameter of workpiece(mm):900
Distance between two bearing support(mm):80-1000
Max.rotor Diameter(mm): 10-140
Balanncing speed min(r/mm): 300-5000
(Neutral speed regulating)
Min.achievable residual balance(Less than or equal to 0.5
Unbalance reduction ratio(%): Be equal or greater than 90
Drive power(kw): 0.85/1.1(A:1.5)
YYQ-160(A)
Max. mass of workpiece(kg):2-160
Max.diameter of workpiece(mm):950
Distance between two bearing support(mm):100-1400
Max.rotor Diameter(mm): 10-180
Balanncing speed min(r/mm): 300-2500
(Neutral speed regulating)
Min.achievable residual balance(Less than or equal to 0.5
Unbalance reduction ratio(%): Be equal or greater than 90
Drive power(kw): 0.85/1.1(A:1.5)
YYQ-300A
Max. mass of workpiece(kg):5-300
Max.diameter of workpiece(mm):1200
Distance between two bearing support(mm):150-1500
Max.rotor Diameter(mm): 20-180
Balanncing speed min(r/mm): 300-2500
(Neutral speed regulating)
Min.achievable residual balance(Less than or equal to 0.5
Unbalance reduction ratio(%): Be equal or greater than 90
Drive power(kw): 4.0
YYQ-500A
Max. mass of workpiece(kg):10-500
Max.diameter of workpiece(mm):1500
Distance between two bearing support(mm):150-1500
Max.rotor Diameter(mm): 20-240
Balanncing speed min(r/mm): 180-2500
(Neutral speed regulating)
Min.achievable residual balance(Less than or equal to 0.5
Unbalance reduction ratio(%): Be equal or greater than 90
Drive power(kw): 4.0
YYQ-1000A
Max. mass of workpiece(kg):10-1000
Max.diameter of workpiece(mm):1500
Distance between two bearing support(mm):150-2600
Max.rotor Diameter(mm): 20-240
Balanncing speed min(r/mm): 180-2500
(Neutral speed regulating)
Min.achievable residual balance(Less than or equal to 0.5
Unbalance reduction ratio(%): Be equal or greater than 90
Drive power(kw): 5.5
YYQ-1600A
Max. mass of workpiece(kg):30-1600
Max.diameter of workpiece(mm):1800
Distance between two bearing support(mm):150-2600
Max.rotor Diameter(mm): 20-240
Balanncing speed min(r/mm): 180-2500
(Neutral speed regulating)
Min.achievable residual balance(Less than or equal to 0.5
Unbalance reduction ratio(%): Be equal or greater than 90
Drive power(kw): 7.5
YYQ-3000A
Max. mass of workpiece(kg):100-3000
Max.diameter of workpiece(mm):2000
Distance between two bearing support(mm):150-2600
Max.rotor Diameter(mm): 15-300
Balanncing speed min(r/mm): 180-2500
(Neutral speed regulating)
Min.achievable residual balance(Less than or equal to 0.5
Unbalance reduction ratio(%): Be equal or greater than 90
Drive power(kw): 11
