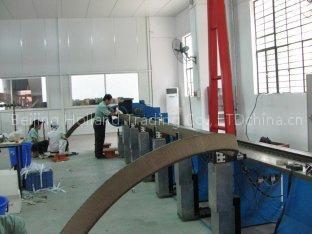

Turbine Generator Coil Line Taping Machine

Specification:


1. Copper rods to be held by mechanical hands, holding force of the hands: 150Kg。

2. Max. taping section: 145×45mm²。

3. Tape width 25mm, semi-overlapping 12.5mm, twin taping 6.25mm。

4. Straight part: max.7m, min. 2.2m, 7 mechanical hands 。

5. Constant Tension Tape Disc 1 set, Adjustable Tension Tape Disc for normal use。

6. Speed: 60~200r/m, frequency variable speed control。

7. Taping speed 8 times faster than manual operation。
