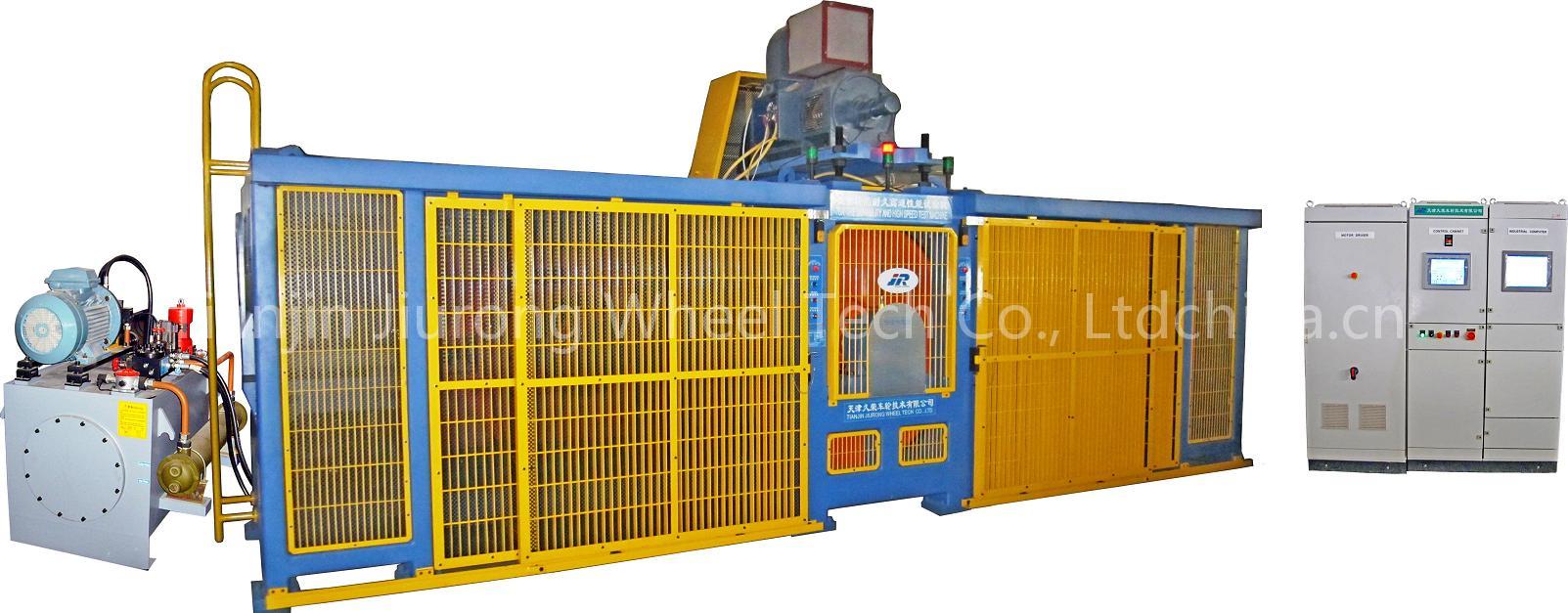

Truck & Bus Tire Endurance High Speed Test Machine

It is used for testing truck and bus tire endurance and high speed performance Structure: vertical machine frame Test Position: 2 Drum Diameter × Width: Φ1707.6 × 500mm Drum Radial Run-out: ≤ 0.20 mm Drum Lateral Run-out: ≤ 0.20 mm Residual imbalance: < 5g Tire Diameter: Φ800mm ~ Φ1400mm Tire Max.

Section Width: < 500mm Test Speed: Max.160 km/h, accuracy: 0 ~ +2 km/h Radial Load: Max.100 kN, accuracy: ±1%P.S. Loading Means: Hydraulic servo in closed-loop Motor Power: 144 kW DC (or AC Inverter) Dimension: Approx. L7800mm × W2000mm × H3200mm Total Weight: Approx. 15t
