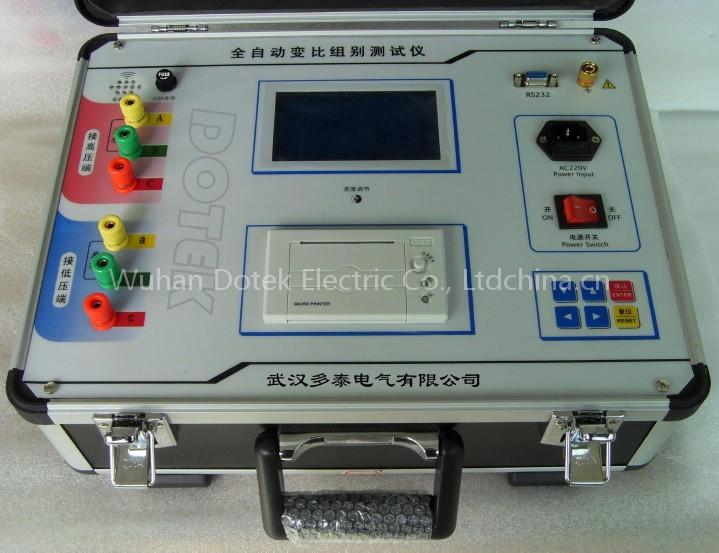

Transformer Turn Ratio Tester

DescriptionDTBZ-2009 is an enhanced Transformer Turn Ratio Tester. It is capable to test single-phase and three-phase transformers.
