Listing ID#10223053
ModelSJYQ
CategoryOffice Desks

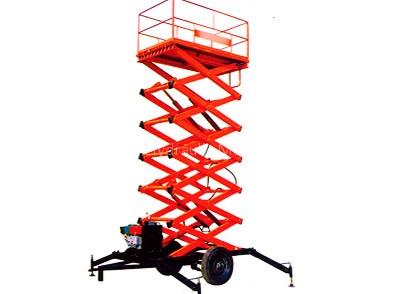

Traction Scissor lift table
Specifications
- Brand
- scissor lift
- Origin
- China
- Price Term
- FOB
Quick answer
Traction Scissor lift table is a Office Desks product. Key specs — Brand: scissor lift; Origin: China; Price Term: FOB.
Product Description
Main points:
1.Capacity:300kg
2.Table size:1650*800mm
height:8m
Please tell us the following information:Capacity,Table size,Lifting we can quto you a reasonable price.
Advantage:
1.High-duty rolled steel
2.Customer-design
3.Light weight
4.Hydraulic drive
Specification of scissor lift:
1.Capacity:300kg
2.Table size:1650*800mm
height:8m
Please tell us the following information:Capacity,Table size,Lifting we can quto you a reasonable price.
Advantage:
1.High-duty rolled steel
2.Customer-design
3.Light weight
4.Hydraulic drive
Specification of scissor lift:
Model | Lifting height(m) | Capacity(kg) | Table size(mm) | Total dimension(mm) | Mating power(kw) |
SJYQ0.3-6 | 6 | 300 | 1650*750 | 3150*1300*2100 | 2.2 |
SJYQ0.3-8 | 8 | 300 | 1650*800 | 3150*1400*2200 | 2.2 |
SJYQ0.3-10 | 10 | 300 | 2100*1220 | 3430*1800*2300 | 2.2 |
SJYQ0.3-12 | 12 | 300 | 2550*1500 | 4150*2100*2850 | 2.2 |
Power driven:
1.Power of the scissor lift could be electronic or diesel or manual. And the lifting drive of the lift is hydraulic.
platform makes use of external power to do traction, the use of three-phase power or diesel-powered, mobile conveniently.
