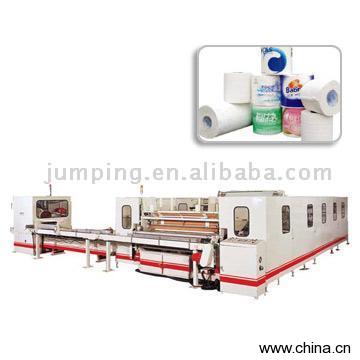

Toilet Roll Production Line is a Business Services product. Key specs — Origin: China (Mainland).
Product Description
Model No.:ZDJ-XJ (II) Product Origin:China Brand Name: Price Terms: Payment Terms: Certification: Description:Main features:ZDJ-XJ (II) toilet roll production line is a new generation toilet roll converting machine, which integrates photoelectric and pneumatic controlling.
It adoptsPLC, frequency speed controlling, and electric cabinet that using man-machine interface operating. It also has the features of easy operation and easy adjusting.Relevant positions equip with photoelectric switch to inspect machine running (e.g. paper breakages, non-core running or others). It has automatic stop function.
Rewinder is equipped with automatic tension controlling for adjusting tension automatically. Independent motor controlling and automatic loading device lowers the labor cost and increases working efficiency. It is the first choice among toilet roll processing machines.Technical parameters:A.
ZDJ-XJ automatic rewinding machine(1) Model: 1092, 1575, 1760, 2500, 2800(2) Parent roll width: 1,300mm, 1,700mm, 1,800mm, 2,400mm, 2,700mm(3) Parent roll diameter: 1,200mm (other sizes to be ordered)(4) Parent roll core: 3 inches (76mm diameter) (other sizes to be ordered)(5) Feeding function: mechanical or pneumatic(6) Unloading stand: two (others to be ordered)(7) Tension controlling: automatic adjusting(8) Product diameter: 80-130mm (other sizes to be ordered), adjustable tightness(9) Perforating pitch: 90-130mm adjustable (other sizes to be ordered)(10) Product core diameter: 35-55 adjustable(11) Controlling system: PLC controlling, frequency speed controlling, LCD touch screen display, electric-eye inspecting(12) Trimming and tail-gluing device: intermission stop, inside automatic trimming and tail-gluing (13) Production speed: 120-200m/min (speeds differs according to different parent rolls)(14) Installed power: AC380V, 50Hz, 5.5-11kW(15) Air pressure: 0.5MPa (prepared by the purchaser)Optional parts:(1) Embossing device: steel-to-steel (model: 1092, 1575, 1760), or steel to rubber or steel to wool roller(2) Tension controlling: automatic(3) Edge-embossing device: independent adjusting B.
Conveyer(1) Convey distance: 8-10m (other sizes to be ordered)(2) Controlling system: independently convey, joining production(3) Installed power: AC380V, 50Hz, 0.55-2.2kWC. ZDJ-Q automatic log saw(1) Parent roll diameter: 90-130mm (can replace collets)(2) Parent roll length: max.
2,700mm(3) Cutting length: servo tracking, adjustable(4) Controlling system: PLC controlling, servomotor driving, electric-eye inspecting(5) Spiral knife diameter: 610mm(6) Milling system: diamond grinding wheel, automatic(7) Installed power: AC380V, 50Hz, 11kW (total power)(8) Cooling and lubrication system: automatic, adjustable time(9) Productions speed: 70-100 cuts/min (double lines unloading construction)
