Tiller
Specifications
- Origin
- Shandong china
- Price Term
- FOB
Tiller is a Bath Brushes, Sponges & Scrubbers product. Key specs — Origin: Shandong china; Price Term: FOB.
Product Description

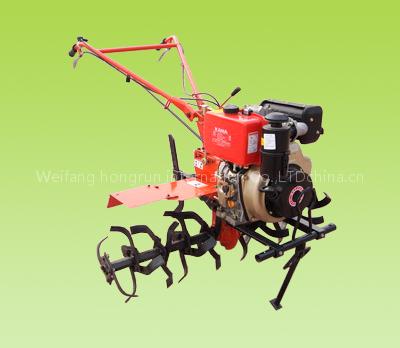

1.1WG-6 Tiller can works for tilling fields, cultivating wastelands, ditching, and ridging in the greenhouse, vegetable garden, flower garden, orchard, paddy field and hillside.
2. Equipped with relevant machinery accessories, it can conduct many kinds of works like plough, spraying drug, cleaning grass, earthing up and transportation etc.
3. Especially in the tilling function, 1WG-6 can be up to deeper tilling depth.
4. Equipped with wind-cooling engine, it can be more suitably to environment.
5. Gear transmission between the gearboxes and rotary tilling can be more powerful than V-Belt.
Model | 1WG-6 | ||||
Engine | KM178F 3.7/4kw 3000/1500rpm | KM186F 5.7/6.3kw 3000/1500rpm | |||
Weight (with rotary tilling part) | 125kg | ||||
Overall dimesion | 173cm*60cm*100cm | ||||
Fuel consumption | ≤12kg/h㎡ | ||||
Productivity | rotary tilling | ≥0.1h㎡/hm | |||
Tilling depth | rotary tilling | ≥8cm | |||
Tilling width | rotary tilling | 75-135cm | |||
Drive speed | forward tilling | 0.14-0.36m/s | |||
backward tilling | 　 | ||||
Wheelbase | 50cm | ||||
Narrowest tilling blade distance | 30cm | ||||
Tilling blade radius | 35cm | ||||
Tilling blade model | KJ265 | Clutch version | Friction sheet | ||
Tilling blade equipped available (pcs) | 24+8+8 | ||||
Rated rotary speed r/min | 3000/3600 | Blade rolling speed | 80r/min-149r/min | ||
