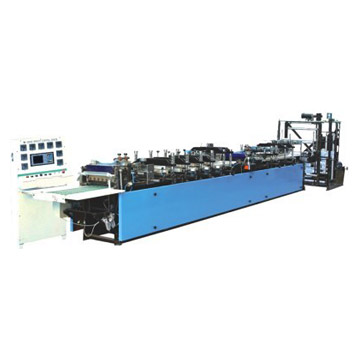

Three-Side Sealing Bag Making Machine

Product Name: Three-Side Sealing Bag Making MachineModel Number: A012Place of Origin: ChinaApplications: The machine is applicable to the production of twofold or multifold three-margin-sealed multiple membrane bags which take BOPP, PET, CPP, PE, nylon, aluminum foil, and paper as basic materials.

This equipment is easy to run and its product is smooth in surface and beautiful in shape, with high thermal sealing intensity and high production speed. It is the ideal packaging bag manufacturing device. Performances and characteristics: This machine adopts computer controlling system which is of industry level. All parameters adopt CRT real-time display.

The bag-making speed, bag-making length, temperature, counting, punching and conveyor quantity of doubling finished products can be preset. Releasing tension can be controlled by full-automatic adjustable constant tension control system. LPC automatic deviation-rectifying and double photoelectric tracking are installed in this machine.

There are special functions, such as new type pressure-lifting 6 times conveying function, computer 16-route PID constant temperature control, pneumatic multi-functional punching, automatic collecting of cut rim charge, electrostatic elimination.

Technology of self supporting and self-sealing device is in the lead at home, which can truly make bag by one machine with multiple functions.

Specifications: 1) Max. length: 50 - 450mm 2) Max. width: 50 - 600mm 3) Sealing width: 6 - 20mm 4) Bag output: 30 - 110times/min 5) Total power: 25kW 6) Weight: 5,800kg 7) Boundary dimensions (L x W x H): 9,060 x 1,200 x 1,680mm
