Listing ID#10102685
ModelXH1200HB3
CategoryPackaging & Printing

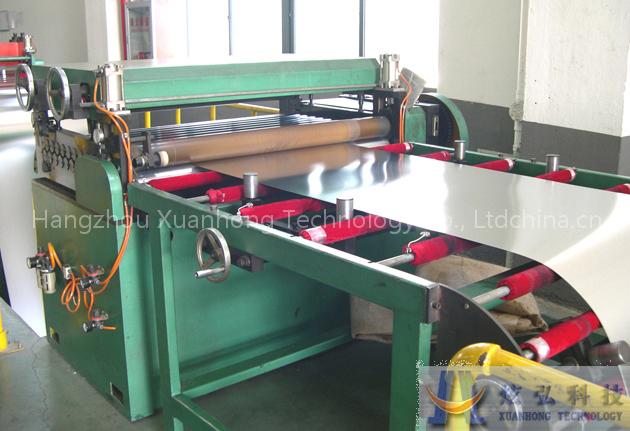

Thin Plate Scroll Cutting line(XH1200HB3)
Specifications
- Brand
- xuanhong
- Origin
- CHINA zhejiang
Quick answer
Thin Plate Scroll Cutting line(XH1200HB3) is a Packaging & Printing product. Key specs — Brand: xuanhong; Origin: CHINA zhejiang.
Product Description
Technical parameters: 1) Cutting width :600-1200mm 2) Cutting thickness :0.15-1.0mm 3) Length tolerance of thin plate : ≤±0.1mm 4) Diagonal tolerance : ≤±0.15mm 5) Cutting length :460-1200mm 6) Maxmum OD of coil materal : Φ2000mm 7) Decoiling expansion range : Φ380-450mmΦ450-520mm 8) Recoiling I.D : Φ508mm 9) Maximum weight of coil material :13.5T 10) Cutting linear velocity:100m/min 11) Cutting frequency :120 times/min 12) Stacker loaded weight :2200Kg 13) Height of stacker:460mm
