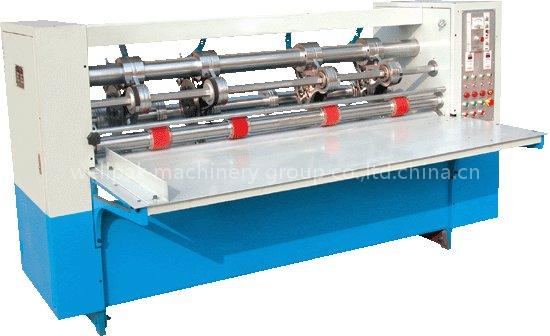

Thin Blade Sheeting Scoring Machine
Specifications
- Origin
- Shenzhen,china
- Price Term
- EXW
Quick answer
Thin Blade Sheeting Scoring Machine is a Business Services product. Key specs — Origin: Shenzhen,china; Price Term: EXW.
Product Description
Feature:
1. It employed pre-press for feeding and stable paper feeding.
2. Thin knife for sheeting (1 mm thick). Equipped with both auto and manual grinding wheel for grinding to keep the blade sharp and sheeted paper board smooth and tidy.
3. After pre-pressing, sheeting, scores folding lines. The line scoring will never give rough edges.
4. May be used as a corrugated cardboard production line's thin blade sheeting unit.
Technical parameter:
1. It employed pre-press for feeding and stable paper feeding.
2. Thin knife for sheeting (1 mm thick). Equipped with both auto and manual grinding wheel for grinding to keep the blade sharp and sheeted paper board smooth and tidy.
3. After pre-pressing, sheeting, scores folding lines. The line scoring will never give rough edges.
4. May be used as a corrugated cardboard production line's thin blade sheeting unit.
Technical parameter:
| Model | BFY-2000 | BFY-2500 |
Board width (mm) | 2000 | 2500 |
Max. speed (m/min) | 141 | 141 |
Sheeting knife (pcs) | 4 | 4 |
Min. sheeting width (mm) | 200 | 200 |
Min. scoring width (mm) | 200 | 200 |
Disc blade OD (mm) | 260 | 260 |
Disc blade thickness (mm) | 1 | 1 |
Motor power (kw) | 4 | 4 |
Weight (kg) | 3000 | 3500 |
Dimensionss (mm) LxWxH | 2630x1791x1130 | 3050x1791x1130 |
