Listing ID#10214732
CategoryMining and Metallurgy Projects

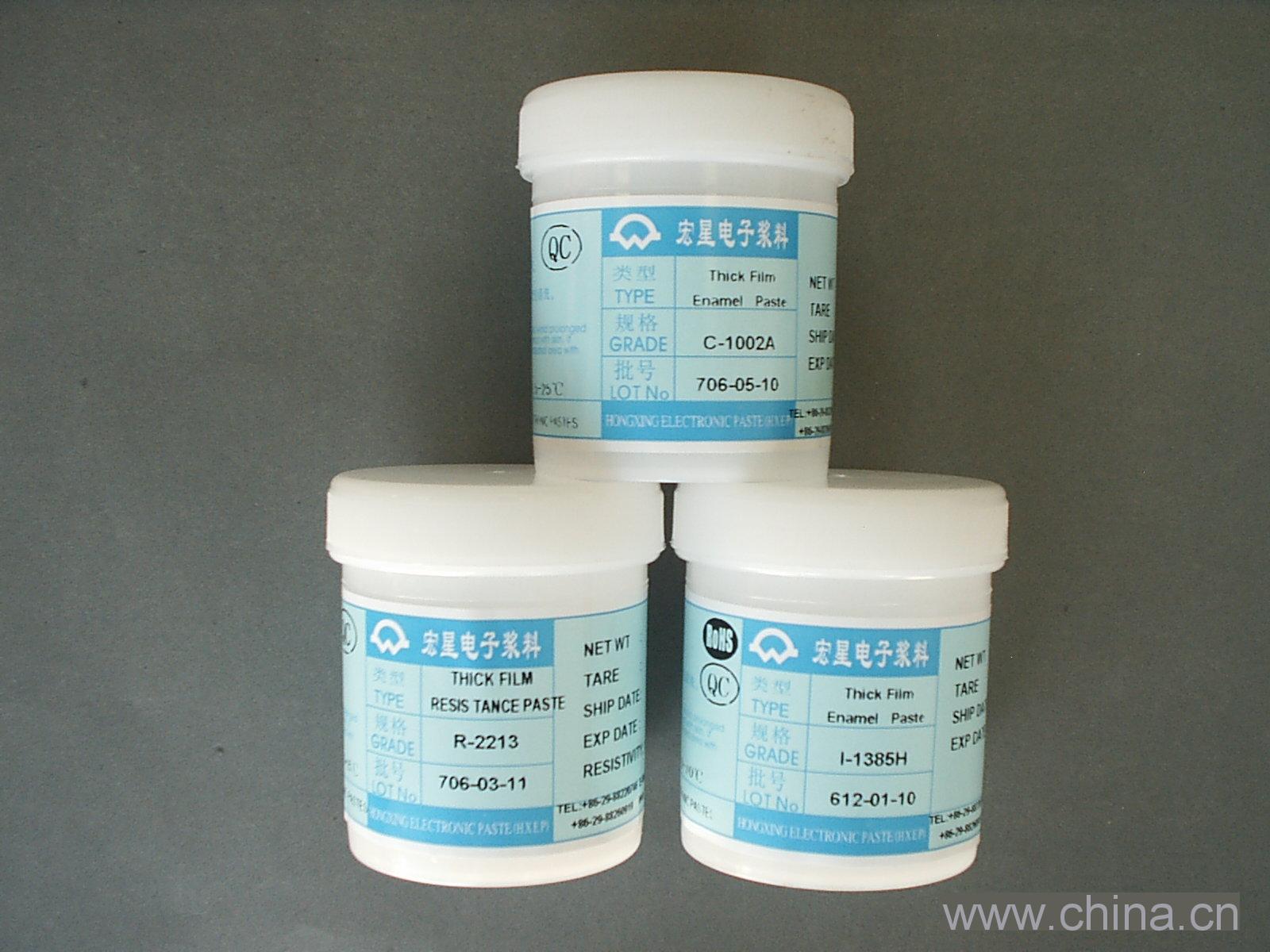

Thick Film Resistive Paste
Specifications
- Brand
- CLEC
- Origin
- China (Mainland)
Quick answer
Thick Film Resistive Paste is a Mining and Metallurgy Projects product. Key specs — Brand: CLEC; Origin: China (Mainland).
Product Description
Key Specifications/Special Features: R-2200 series resistance pastes for chip resistors Resistivity: 0.2 to 10Mohm Tolerance: +/- 15% TCR: +/- 100ppm/degree Viscosity: 100 to 200Kcps R-4800 series high-voltage resistor pastes Resistivity: 1 to 100Mohm Tolerance: +/- 15% TCR: +/- 150ppm/degree Viscosity: 120 to 210Kcps R-5000 series lead-free resistance pastes Resistivity: 1 to 1Kohm Tolerance: +/- 15% TCR: +/- 100ppm/degree Viscosity: 100 to 200Kcps
