Blended Mercury Lamp (needless to use additional ballast and used as a substituted for incandescent bulb suitable for indoor and outdoor lighting)

Type	Wattage (w)	Supply Volt (v)	Luminous Fluk (lm)	Avg Life (h)	Base	Diameter (mm)	Length (mm)
ED-BULB OPTION: CLEAR, COATED
HMB100	100	220	1050	2000	E27/B22	71	170
HMB125	125	220	1500	1600	E27/B22	77	180
HMB160	160	220	2560	2500	E27/B22	77	180
HMB250	250	220	4900	3000	E40	91	230
HMB500	500	220	11000	3000	E40	120	290
HMB1000	1000	220	21000	6000	E40	180	410

H.P Mercury Lamp (need to use additional ballast and high in luminous efficiency long in using life suitable for outdoor ling ting)

Type	Wattage (w)	Supply Volt (v)	Luminous Fluk (lm)	Avg Life (h)	Base	Diameter (mm)	Length (mm)
ED-BULB OPTION: CLEAR, COATED
HM50	50	220/120V	1575	3500	E27/E26	56	145
HM80	80	220/120V	2940	3500	E27/E26	71	170
HM125	125	220/120V	4990	5000	E27/E26	77	180
HM175	175	220/120V	7350	5000	E40/E39	91	210
HM250	250	220/120V	11025	7000	E40/E39	91	230
HM400	400	220/120V	21000	7000	E40/E39	120	290
HM1000	1000	220/120V	52500	5000	E40/E39	180	410

Refector Mercury Lamp(the inwall of glass bulb is coated with reflex layer and designed with light-focusing high in luminous efficiencyfocusing in ray of light. suitable for projection light in the place of squrestationwharf and construction site)

Type	Wattage (w)	Supply Voltage (v)	Luminous intensity (lm)	Avg Life (h)	Base	Max.diameter (mm)	Max.length (mm)
HMR50	50	220/120V	211	3000	E27/E26	81	152
HMR80	80	220/120V	497	3000	E27/E26	101	179
HMR125	125	220/120V	903	3000	E27/E26	127	198
HMR400	400	220/120V	4000	6000	E40/E39	182	302

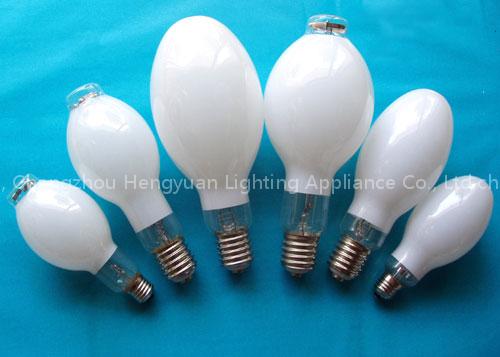

The supply of mercury lamp
