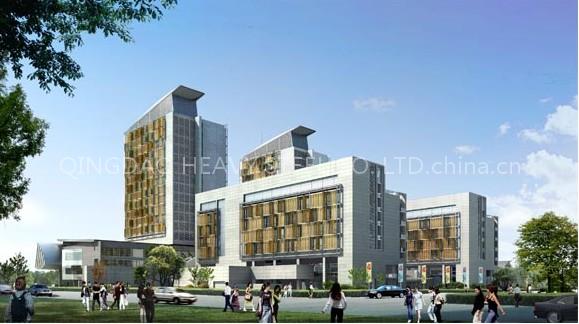

The Steel Structure Engineering of Olympic Village

The Steel Structure Engineering of Olympic Village include main entrance awning, sunshine corridor, two layers Open platform, four layers Roof rack, 21 meters Air corridor,Two wave plate,two lightning rod and so on.

The main entrance awning consists of cross-section t-shaped beam and steel beam connections between components.Sunshine corridor is composed of 50 piece D shape layers open platform structured by l-shaped steel which is connected by steel pipes.

Four layers roof rack is structured by 350 * 350 * 30 style box column and the column height is about 2.5 meters. roofing beams characterized by H type beams and H mixed beams. The main entrance awning composed of variable cross-section t-shaped steel beam and the steel pipe between the beam. Seven layers roof rack consists of box column 400 x 4 x 30.

Air corridor is composed of box girder 300 x 2.5 x 16 and H beams
