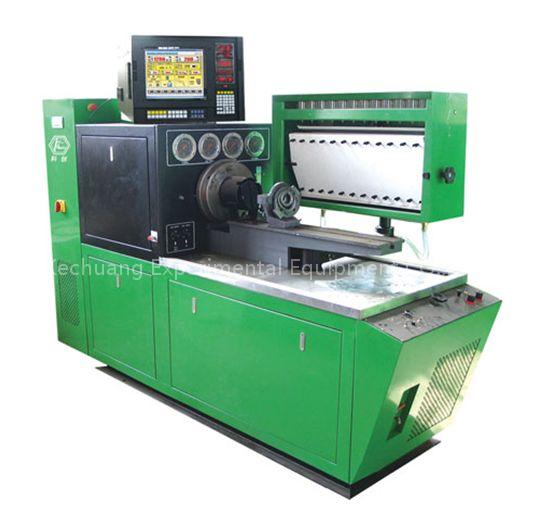

Test Bench-EPT-EMC Fuel Pump Test Bench

Characteristics◎Changing frequency changing rotation speed;◎Small fall of rotation speed and large output torque;◎High measurement precision;◎The functions of overvoltage, overload and short circuit protection;◎Eight kinds of rotation speeds presetting;◎Constant temperature controlled;◎Ultra low noise;◎Operating position: arbitrary side of the two work sides of the test stand;◎Advance angle, rotation speed, count, temperature and air pressure are displayed on15"CRT or LCD;(may selection)◎Built-in air resource;Functions◎Measurement of each cylinder’s delivery at various rotation speeds;◎Checking of each cylinder’s injection time with static state;◎Checking of the mechanical speed governors;◎Checking of the electric magnetic valve of distributor pumps;◎Checking performance of the pneumatic governors;◎Checking of the pressure compensators(LDA);◎Measurement of the reflux delivery of distributor pumps; (may selection)◎Measurement of the internal pressure of the distributor pumps body;◎Checking of the pneumatic speed governors` vacuum performance;◎Measurement of rack travel; (may selection)◎Measurement of advance angle; (may selection)Technical Parameters◎Adjustable rotation speed range:0~4000RPM;◎Double series of graduates:45CC,150CC;◎Volume of oil tank:60L;◎Temperature stabilization:40±2℃;◎Test oil filtering unit:5μ;◎D.C.Supply:12V/24V;◎Feed pressure:low:0~0.4Mpa,high:0~4Mpa;◎Air pressure:0~0.3Mpa;◎3-phase power supply:380V/50HZ or on request;◎Flywheel inertia’s moment: ◎Center height:125MM;◎Output power:5.5KW,7.5KW,11KWand 15KW or on request;◎Overall dimensions(MM):1920×960×1830;◎Net weight(KG): 1200.
