Tensile Structure (PTFE Architectural Membrane Materials)
Specifications
- Brand
- wei&kai
- Origin
- shanghai
- Price Term
- FOB
Quick answer
Tensile Structure (PTFE Architectural Membrane Materials) is a Shoe Parts & Accessories product. Key specs — Brand: wei&kai; Origin: shanghai; Price Term: FOB.
Product Description

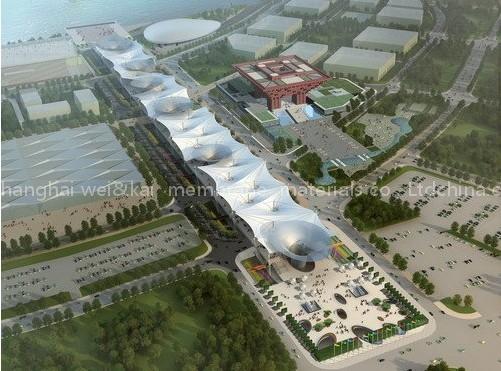

Tensile Structure:
PTFE Teflon Architectural Membrane Materials
The composite is made of fiberglass and polytetrafluoroethylene (PTFE). Our products are available in a range of strengths and light transmission levels, providing the user with a choice of membranes to cover virtually any size structure from a full-sized stadium to a relatively small skylight. All our membranes conform to rigid fire and building codes for permanent buildings.
- The enterprise earliest engaged in PTFE membrane material research and development and production in China
- Successful research and research in 2002 filled domestic blank.
- Utility model patent at national level
- Unique textile technology and fluorin resin coating technology
- More than 20 years’ devotion and profession
- Quality and maximum breadth are next to the world most advanced level.
ADVANTAGE CHARACTERISTICS:
- The thinnest fiberglass
- High chemical stability
- Unique self cleaning
- Unique coating process
- Top technical equipment
- Superior fireproof performance
| 　 | TYPICAL PROPERTIES | |||||
| 　 | Weight (g/㎡) | Thickness (mm) | Tensile Strength (N/cm) | PTFE Content (%) | Temperature Resistance (℃) | Standard Widths (mm) |
| FAC08 | 150 | 0.08 | 180×140 | 66 | -150~+260 | 1000,1250 |
| FAC11 | 200 | 0.11 | 240×220 | 48 | -150~+260 | 1000,1250 |
| FAC13 | 250 | 0.13 | 290×260 | 58 | -150~+260 | 1000,1250 |
| FAC15 | 300 | 0.15 | 310×260 | 65 | -150~+260 | 1000,1250 |
| FAC18 | 330 | 0.18 | 400×360 | 50 | -150~+260 | 1000,1250 |
| FAC20 | 410 | 0.20 | 450×400 | 60 | -150~+260 | 1000,1250 |
| FAC25 | 500 | 0.25 | 480×400 | 59 | -150~+260 | 1000,1250 |
| FAC35 | 650 | 0.35 | 560×480 | 61 | -150~+260 | 1000,1250 |
| FAC-25 | 450 | 0.25 | 550×500 | 56 | -150~+260 | 1800,2000,2200,2500,2600 |
| FAC-30 | 620 | 0.30 | 600×550 | 53 | -150~+260 | 1800,2000,2200,2500,2600 |
| FAC-35 | 700 | 0.35 | 650×600 | 53 | -150~+260 | 1800,2000,2200,2500,2600 |
| FAC-40 | 750 | 0.40 | 700×620 | 53 | -150~+260 | 1800,2000,2200,2500,2600 |
| FAC-55 | 950 | 0.55 | 800×700 | 50 | -150~+260 | 1800,2000,2200,2500,2600 |
| FAC-65 | 1100 | 0.65 | 880×730 | 51 | -150~+260 | 1800,2000,2200,2500,2600 |
| FAC-80 | 1400 | 0.80 | 950×800 | 49 | -150~+260 | 1800,2000,2200,2500,2600 |
| FAC-90 | 1500 | 0.90 | 1050×950 | 52 | -150~+260 | 1800,2000,2200,2500,2600 |
