Taiwan GPS Tracking AVL : Tc-65 GPRS Modem
Listing ID#10009638
CategoryTelecommunications
Telecommunications

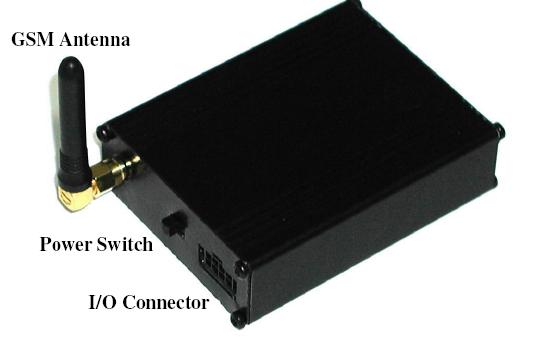

Taiwan GPS Tracking AVL : Tc-65 GPRS Modem

Specifications

Origin
Taiwan
Request Quote
Quick answer

Taiwan GPS Tracking AVL : Tc-65 GPRS Modem is a Telecommunications product. Key specs — Origin: Taiwan.

Product Description

The newest GPS/GPRS/GSM quadband multi-function tarcker provide the user high performance in GPS locating, security and navigation.

Hardware specification: Siemens tc65 GSM module Quadband:850/900/1800/1900mhz gsm release 99 Output power: Class 4(2w) for egsm 850 and 900 Class 1(1w) for GSM 1800 and 1900 at commands hayes GSM 07.05 and GSM 07.07 tcp/IP stack access by at command SIM application toolkit release 99 Supply voltage range:3.2 to 4.5v Sleep mode (registered drx=6)3 ma Charging control for lithum batteries Dimensions:34 x 45 x 3.5mr Java tm features support of tcp, udp, , ftp, smtp, pop3 Arm7 processor Memory:400kbytes(ram) and 1.7mbytes(flash) Improved power saving mode Class b mobile station GPS sirf star lll specification: Track to 20 satellites.

Receiver: L1, c/a code Max update rate 1 hz Acquisition time Reacquisition 0.1sec. Averaged Hot start 1 sec. Averaged Warm start 38 sec. Averaged Cold start 42 sec. Averaged Dgps(differential) Position 5-25m cep without sa I/o:2 input and 1 output supporting for configuration.
