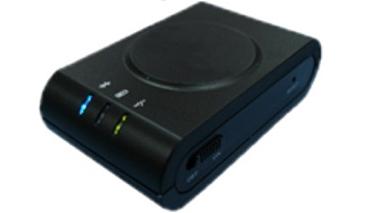

Taiwan Bluetooth GPS Receiver

Features: 1. Sony cxd2951 low power consumption chip 2.12 parallel satellite tracking channels 3. Integrated patch antenna 4. Rechargeable and removable lithium-ion battery lasts for 12 hours of continual use 5. Support nmea0183 v.3.01 6. Fully compatible with bluetooth serial port profile (spp) 7. Bluetooth v 1.1 class 2 bluetooth radio 8.

Low power consumption 9. Smart power saving feature 10. Suitable for car navigation, marine navigation, fleet management, avl, personal navigation, tracking and mapping Specifications: 1. GPS chipset: Sony cxd2951ga-4 single chip 2. Channel:12-channel GPS receiver capable of simultaneously receiving 12 satellites 3. Frequency:1575.42mhz (l1 band, ca code) 4.

Time to first fix: (1) cold start:45s (average)/60s (95% possibility) (2) warm start:30s (average)/35s (95% possibility) (3) hot start:2s (average)/3s (95% possibility) 5. Switch and connectors: Power switch, reset button, power jack 6. LED status indicators:3-color: GPS status (green), bluetooth status (blue), battery status (red) 7.

Dimension:73.4 x 39.0 x 18.9 mm (l x w x h) 8. Positioning accuracy:2drms: Approx.2m 9. Sensitivity: (1) tracking sensitivity: -152dbm (average) or less (2) acquisition sensitivity: -139dbm (average) or less in normal mod 10. Update time:1 sec 11. Power source: Removable rechargeable lithium ion battery with 5v DC input charging circuit 12.

Operation time:12 hours typical after full charge, continuous mode at 25 centigrade 13. Limitations: (1) altitude: (2) velocity: (3) acceleration: 14. Physical specification: (1) operating temperature: -20 ~ +60 centigrade (2) storage temperature: -20 ~ +85 centigrade (3) operating humidity:5% to 95%; no condensing 15.

Bluetooth interface: (1) bluetooth frequency:2.4 ~ 2.48ghz (2) bluetooth specification: V1.1 specification compliant (3) bluetooth profile: Serial port profile (spp) (4) bluetooth power class: Class 2 (maximum 10 meter range) Remark: All contents are subject to change without notice.
