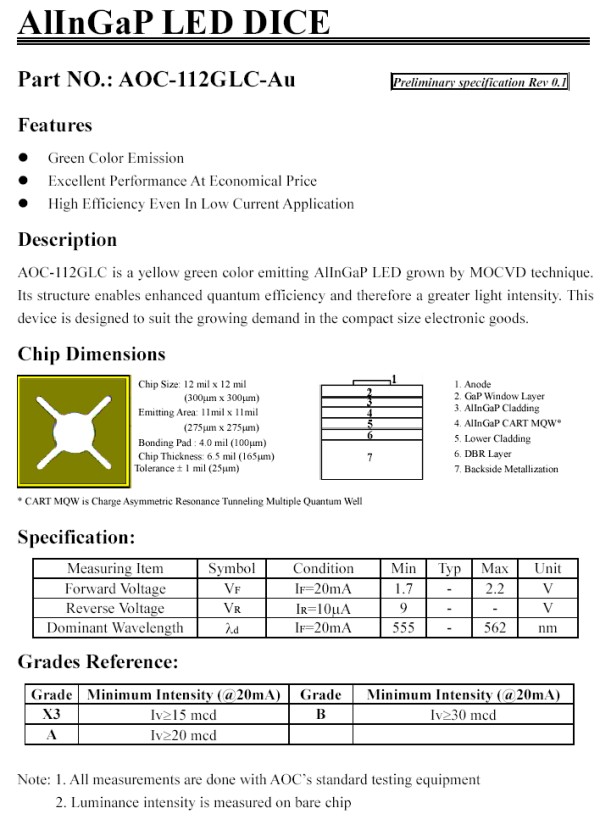

AlInGaP LED DICE Part NO.: AOC-112GLC-Au (Preliminary specification Rev 0.1) Features Green Color Emission
Excellent Performance At Economical Price
High Efficiency Even In Low Current Application Description AOC-112GLC is a yellow green color emitting AlInGaP LED grown by MOCVD technique.

Its structure enables enhanced quantum efficiency and therefore a greater light intensity. This device is designed to suit the growing demand in the compact size electronic goods.

Chip Dimensions Chip Size:12 mil x 12 mil (300um x 300um) Emitting Area:11mil x 11mil(275um x 275um) Bonding Pad:4.0 mil (100um) Chip Thickness:6.5 mil (165um) Tolerance (+-) 1 mil (25um) 1. Anode 2. GaP Window Layer 3. AlInGaP Cladding 4. AlInGaP CART MQW* 5. Lower Cladding 6. DBR Layer 7.

Backside Metallization Specification: Measuring Item______Symbol__Condition___Min___Typ___Max___Unit Forward Voltage______VF______IF=20mA____1.7____-____2.2____V Reverse Voltage______VR______IR=10uA_____9_____-_____-_____V Dominant Wavelength__d_______IF=20mA____555____-____562____nm Grades Reference: Grade___Minimum Intensity()___Grade___Minimum Intensity() X3____________Iv>=15 mcd_____________B_______Iv>=30 mcd A_____________Iv>=20 mcd Note: 1.

All measurements are done with AOC\'\'s standard testing equipment 2. Luminance intensity is measured on bare chip
