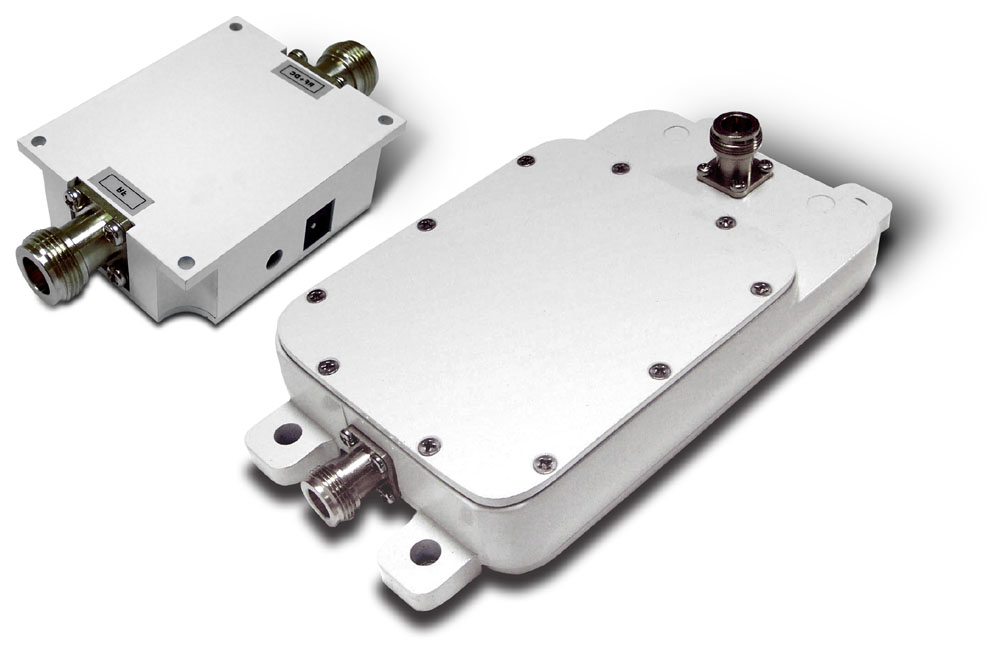

Taiwan 802.11b 2.4GHz - 3.5GHz Converter

Specifications: FEATURES: To extend the range of wireless radio communication system such as Wireless Local Loop (WLL), Wireless Local Area Network (WLAN), Wireless Internet Access (WIA) 3500~3580 MHz unlicensed ISM Band 200mW output power level 28 dB receive gain Bi-directional TDD technology Transmitter and receiver LED SPEC FOR CONVERTER: Operating Frequency Range: 3500~3580 MHz Input Frequency Range: 2400~2484 MHz Operating Mode: Bi-directional TDD SPEC FOR DC INJECTOR: Bias Current: 1.5A (max.

DC Voltage: 15V (max.) Insertion Loss: 1dB Connector: N type female for both sides DC Jack: 6 mm, center pin 2.0 mm Dimensions : 99.1(H) x 53.5(W) x 21.2(H)mm
