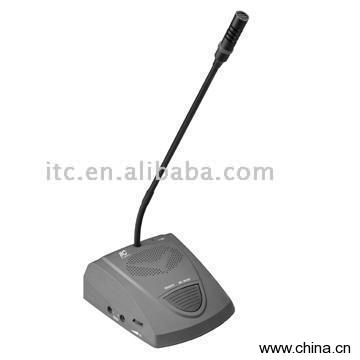

Tabletop Chairman/Delegate Speaker Unit

Model No.:TS-0601, TS-0601A Product

Origin:China Brand

Name:ITC Audio

Price Terms:FOB Guangzhou / Shenzhen / Hong Kong

Payment Terms:T/T (30% deposit, 70% balance before shipment)

Certification:CCC, ISO9001, CE, RoHS Description

Features: 1) Built-in flat panel loudspeaker and earphone jack with excellent audio qualityand adjustable volume control2) Pluggable unidirectional microphone with red ring indicator, easy operation,press only the microphone button to address 3) The flat panel loudspeaker will automatically mute to avoid howling when themicrophone turns on 4) Chairman unit can manage and control the whole conference conveniently5) The power of delegate unit and chairman unit are supplied by the centralcontrol unit with 24V safety current6) The contribution units are equipped with shielded 13-pole cable, which can prevent the radio disturbance well 7) There is no limitation for the chairman unit; it can be located anywhere in thedaisy chain 8) Communicating in the hand in hand daisy-chain, it is easy to install and maintain

Specifications: 1)

Power supply: DC24V (powered by master)2) Unit interface: special interface3) Power consumption: 2.5W4) Headphone output: 9d Bu, 8 - 32ohm, 3.5mm micro faucet5) Loudspeaker power: 2W6) Microphone type: high dispersion electret7) Dispersion characteristics: cordate8) S/N ratio:>80dB9) Crosstalk attenuation:>80dB10) Distortion: 0.10%11) Frequency response: 60Hz - 12k Hz12) Equivalent noise: 20dB SPL13) SPL max.: SPL 105dB 14) Sensitivity: -22d Bv/Pa15)

Dimensions: 247 x 155 x 60mm (without microphone)16) N.W.: 0.8kg17)

Color: grey
