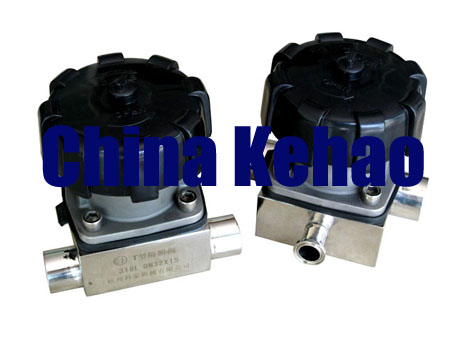

T pattern Diaphragm Valves

Essential in the elimination of dead legs and designed to ease installation and validation, the Saunders Zero Deadleg T pattern forging makes an important contribution in enhancing the integrity of critical systems. The T pattern Diaphragm Valves normally features three common ports with the same bore dimensions and incorporates a valve body and tee fitting into a single solution. Key benefits in addition to the elimination of dead legs include its compact space saving design and excellent drainage characteristics to facilitate quick and effective sterilisation. Importantly, the T pattern Diaphragm Valve is machined from a single piece forging to eliminate welds and offer maximum structural integrity.

Size Range: DN6-DN100 (¼ 4)

End Connections: Tri-clamp or Butt-weld end connections

Body Material: US316L

Diaphragm Material: EPDM or EPDM+PTFE

Body Configuration: 2way, L pattern, T pattern, Multiway, Tandem, Tank Bottom

Surface Finish: Mirror polishing treatment

Standard: ISO, DIN, IDF, SMS

Operation: Manual or Pneumatic

Application: pharmacy, beer, food, dairy, beverage, cosmetic, chemical industry
