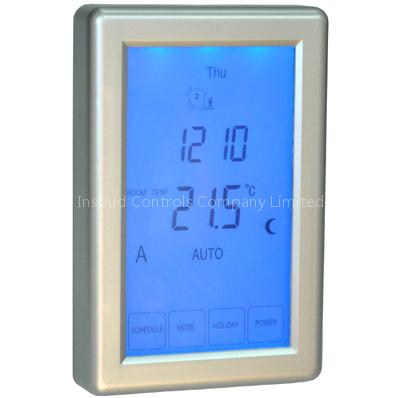

TR8100V vertical touch screen thermostat

TR8100V Vertical flush mount thermostat

Programming

Choice of 7 day, 5/2 day programmable or

non-programmable (installer selectable)

4 time and 4 temperature settings per day

pre-programmed or personalized schedule

Energy savings up to 33%

Display

Large, 4.3-inch touchscreen display

Blue, lighted display for easier low-light viewing

Larger, easy-to-read character size

Extra-large touch keys for easy operation

Clean, uncluttered touchscreen display provides

easier navigation.

Comfort & Convenience

Intuitive menu-driven set-up, programming and operation

with audio prompt to confirm touchscreen entries

Permanent program retention during power loss

Setpoint temperature “limited range” capable

Enhanced touchscreen security prevents tampering.

Room temperature display can be recalibrated up to 4°C

Can switch upto 16 amps (230v)

Temperature display resolution: 0.1 C

Temporary temperature override

C / F temperature format selection by buttons

Air / floor temperature calibration separately

Available in white and silver plastic finishes

A / AF/ F models all in one

Combination of 3 models

A - Air only, with built-in sensor

F - Floor only,controls floor temperature

AF - Controls air temperature with ability to limit the floor temperature

Each thermostat is equipped with built-in sensor

and a 3 meter floor sensor. The floor sensor can be extended.

Useful settings

Vacation mode(frost protection mode)

24hr/12hr clock format selection

Switching differential setting

Floor temperature limit
