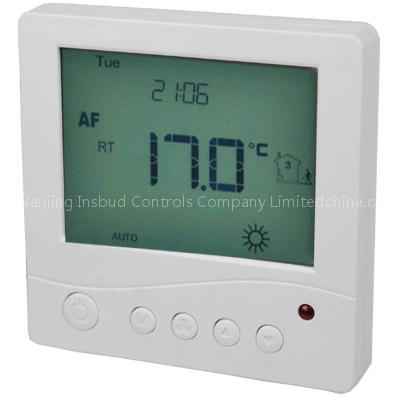

TR3100 floor heating thermostat

TR3100 Digital room thermostat for under floor heating system 1 built-in sensor 1 remote sensor TR3100EFH --- For electric floor heating TR3100WFH -- For water floor heating Features * Large LCD display * Extra slim and compact control panel * Can switch up to 16 amps, (230v AC, 120v Ac available) * Can be either an air only / floor only / Air & Floor * 7 day programmable (each day can be set different). * 4 set points per day (2 comfort - 2 economy), or 4 independent setpoints per day * Manual temporay override and vacation mode * Frost protection function * White backlight / Blue back light optional * White,silver plastic finishes * F / C temperature format can be selected * 12/24 Hour clock format can be selected * Programmes and settings can be reserved after power break * Equipped with air and floor sensor * Back light turning on/off time can be set * Floor temperature limit * Adjustable switching differential * Firmware can be upgraded * Customizing welcome Specifications * Power supply: 230VAC (120VAC optional) * Inputs: 2 x NTC10K temperature sensors * Output: 1 x switch relay(R1),max 3500watts * Ambient temperature: 0 °C [+32 °F] ~ +45 °C [+113 °F] * Operating RH: 0~95% (non condensing). * Dimensions: 86mm x 86mm x13mm * Display Size: 65 x 48mm. * Backlight life: 5,000 hours. * Battery type: CR 1220 (Backs up clock only) * Battery life: > 5years (10 years Maximum) Ordering code TR3100EFH for electric floor heating TR3100WFH for water floor heating TR3100-RC remote control version TR3100-2Z 2 zones, 8amp for each zone, non-programmable TR3100-2ZP 2 zones, 8amp for each zone, programmable
