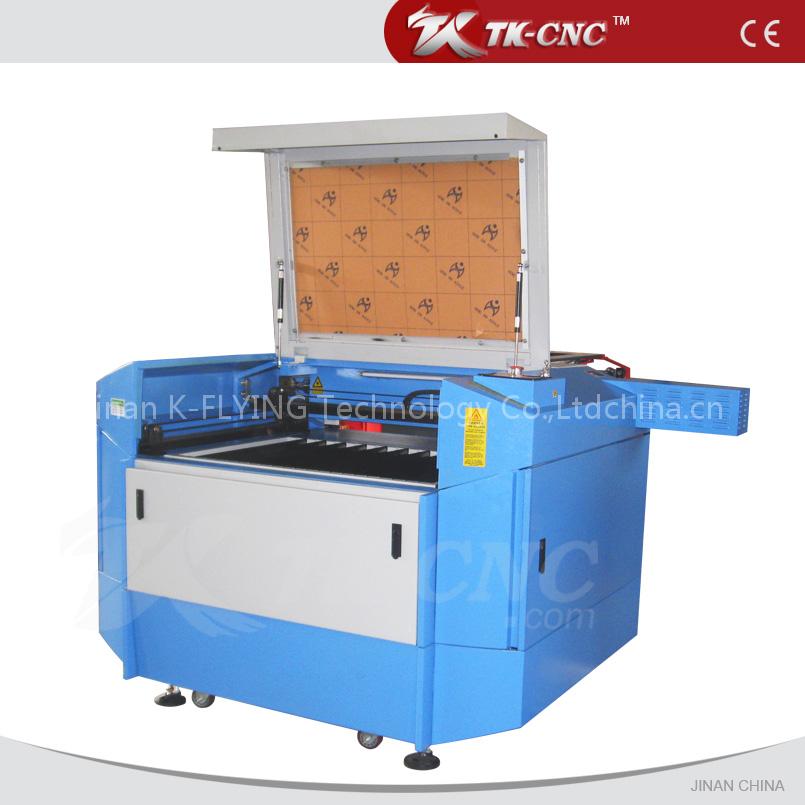

TK-CNC laser machine TK-6090
Specifications
- Brand
- TK-CNC
- Origin
- JINAN CHINA
- Price Term
- FOB
TK-CNC laser machine TK-6090 is a Electronics Production Machinery product. Key specs — Brand: TK-CNC; Origin: JINAN CHINA; Price Term: FOB.
Product Description
Detailed Product Description
laser machine
Use famous brand parts ,assure the quality.
Designed by engineer working 20 years
Features:
1) The X,Y axis adopt imported strait guide line and step motor with speed-reducing driven system to approve cutting stable and cutting face smooth.
2) High strength, high stiffness of the mechanical structure design
3) With imported gilded lens with silicon base and two-layer focusing system, the equipment produces smaller facular and stronger.
4) Industry Water-cooling system with self-protective function assures stable continuous working.
5) CE certification
Applicable industries & Materials:
Billboard, crystal, paper,bamboo, garments and leather industries, embroidery, double color boards, acrylic, glass, wood planks, rubber, marble.
Technical parameters:
Machine Model | TK-6090 laser machine |
Laser-type | Hermetic and detached CO2 laser tube |
Laser-power | 60W (80w for option) |
Control and Drive | Speedy DSP Controlling, Steper Motor |
Max Engraving Speed | 1200mm/s |
Max Cutting Speed | 500mm/s |
Repeating Location | 0.01mm |
Minimum Character | Chinese character 1.5mm, crisscross-row 1mm |
Max Power | 750W |
Working Travel Area | 600*900mm, 600mm width with infinity material-feeding |
N.W | 202kg |
G.W | 274kg |
Packing Size | 1870* 1240* 1200mm |
Delivery Date | 15 working days |
Optional Equipment
1.Rotary attachment
2.Motorized up-down table
3.Water-cooling unit
4.Red-light position
5.Vacuum table
6.DSP Off-line operation with USB flash
Guarantee & after- sales Service:
Laser tube guarantee 6 months.while the whole machine gurantee for 1 year.
24-hour technical support by email or calling
User-friendly English manual and operation vedio CD.
Samples:
Parts:
Video:
l Engraving on mirror
l Photo Engraving >
