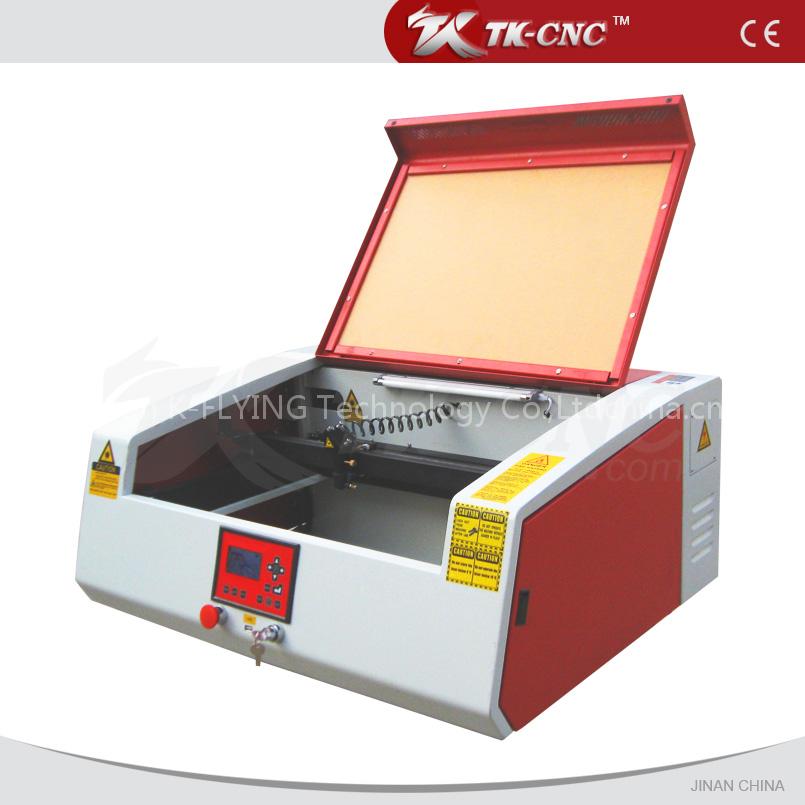

TK-5030 laser machinery
Specifications
- Brand
- TK-CNC
- Origin
- JINAN CHINA
- Price Term
- FOB
TK-5030 laser machinery is a Other Plastic & Rubber Machinery product. Key specs — Brand: TK-CNC; Origin: JINAN CHINA; Price Term: FOB.
Product Description
Detailed Product Description
laser machinery
1. CE
2. Working area 500x300mm
3. Min engraving letter: 1x1mm
4. Mini laser engraving machine
Features
1. Working area 500*300mm, tiny size, easy to move.
2. China home-made parts but all selected, quality assured.
3. 40w, high accuracy engraving.
4. DSP control system, with USB support.
5. Support CorelDraw and AutoCAD direct print.
Applicable materials & industries
Wood, bamboo, jade, organic glass, crystal, plastic, garments, paper, leather, rubber, ceramic, glass and other nonmetal materials.
Technical parameters:
TK-5030 laser machinery | |
Laser-type | Hermetic and detached CO2 laser tube |
Laser-power | 40W (60w for option) |
Max Engraving Speed | 1200mm/s |
Max Cutting Speed | 500mm/s |
Repeating Location | 0.01mm |
Minimum Character | English 1x1mm |
Max Power | <1500W |
Working Travel Area | 500*300mm |
N.W | 50kg |
G.W | 60kg |
Packing Size | 830*560*350mm |
Delivery Date | 15 working days |
Optional Equipment:
1. Rotary system. For engraving column & cylinder, etc.
2. Motorized up-down table. For feeding thick work piece, often adopted together with rotary system.
3. Water-cooling unit. For cooling down the laser tube.
4. Red-light position. Clear to see where the laser will be
5. Vacuum table. For light-weight work piece such as paper textile, etc
6. DSP Off-line operation with USB, To running without connecting with a computer.
Guarantee & after sales Service:
1. Laser tube guarantees 3 months. While the whole machine guarantee for 1 year.
2. 24 hours technical support by email or calling
3. English manual and video tutorial
Samples:
Parts:
Video:
l Engraving on mirror
l Photo Engraving > Quich start >
