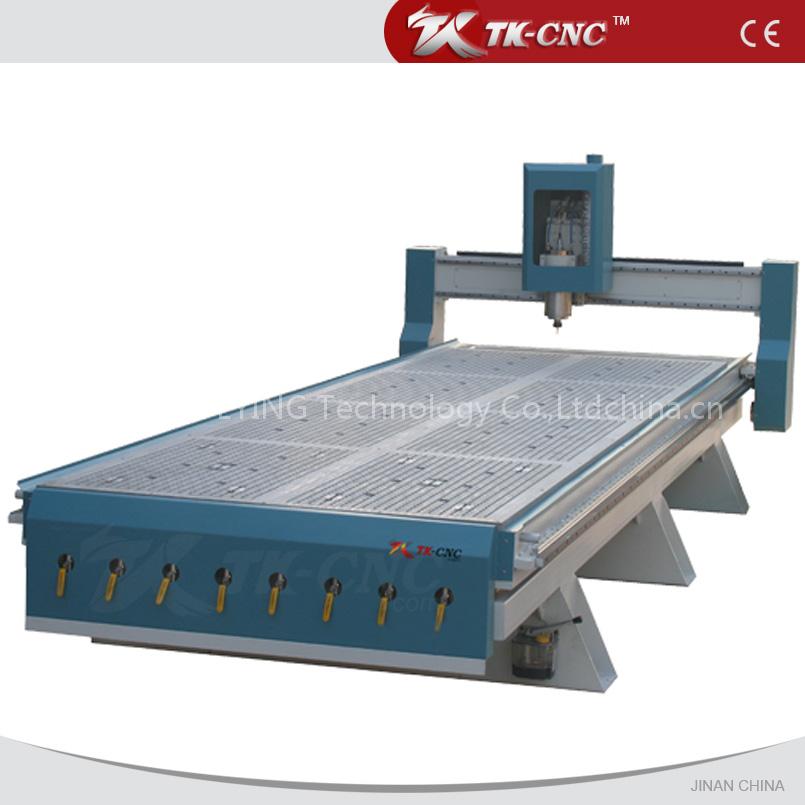

TK- 3060 Woodworking Cnc Router

Features :
1.Suitable for diversified and complex processing, widely used for carving, drilling, cutting, side milling, guiding edge, and mainly used for cutting and wood routing.
2. German-imported vacuum System, Japan-imported servo driving system, High frequency Italy-HSD spindle.
3. Cloak style automated ATC system, 8 knives in storeroom, just 8 seconds per change.
4. Double rails with double sides driving system.
5.Strong vacuum absorption for woodworking mould
6.Processing speed can be up to 25M/min.

Applicable Industries & Materials:
Furniture industry, solid wood furniture, solid wood doors, decorative materials, computer tables, panel furniture, office furniture, wooden speaker and kitchenware, etc. It also takes automobile mould and non-metallic mould.

Guarantee and After-sale service:
All parts 1 year guarantee
7x24h technical support
English manual & Video Tutorial

Product Parameter

• Machine Model:TK-3060
• Working Size:3000 * 6000 (mm)
• Guideway:Square Guideway
• Transmission:Gear Racks
• Spindle Motor:8.0Kw HSD Air cooling Spindle
• Inverter (VFD):Delta
• Driver:Servo Motor(800 W)
• Operating System:SYNTEC
• Software:ARTCUT(English) or TYPE3
• Working Voltage:AC380V 50HZ/60HZ
• Working platform:PVC
• Max Working Speed:20000mm/min
• Repeating Accuracy:<0.01mm
• Gross Weight:3400KG
• Packing size:No packing.
• Delivery Time:25 working days
