Listing ID#10010942

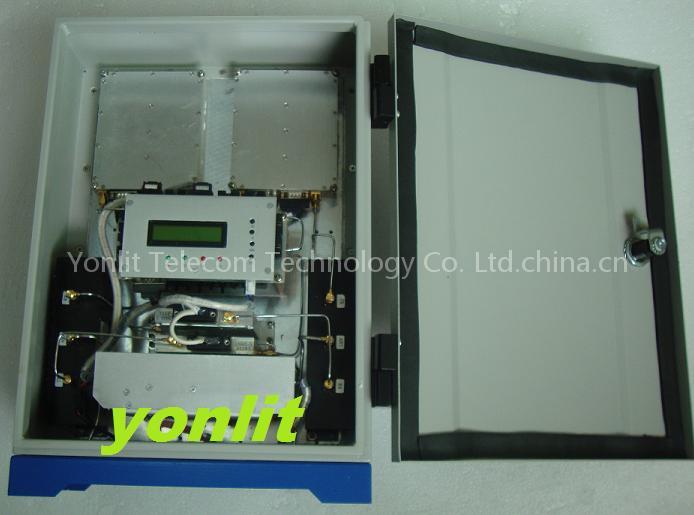

ModelTETRA RF Repeater
CategoryTelecommunications
Quick answer
TETRA RF Repeater is a Telecommunications product. Key specs — Origin: China; Price Term: EXW.
Product Description
Main Item | Specification | ||
UpLink | DownLink | ||
Frequency Range | 380-385MHz | 390-395MHz | |
Relay Frequency | 806-821MHz | 851-866MHz | |
Bandwidth | user's requirement | ||
Maximum Gain | 60-90dB | 65-95dB | |
Frequency Error | <±0.5ppm | ||
Gain Control Range | 0~30dB | ||
RF Output Power | 27/30/34/37dBm | 33/37/40/43dBm | |
Noise Figure | <5dB | ||
Group Delay | <5us | ||
Inband Flatness | <3dB | ||
Intermodulation attenuation | Inband | <- 13dBm/30KHz | |
Outband(0ff 2.5MHz) | <-36dBm/30KHz at 9KHz-1GHz | ||
