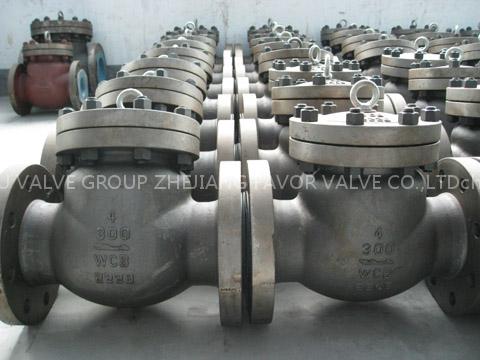

Swing Check Valve is a Metallic Minerals product. Key specs — Brand: FAVOR; Origin: China.
Product Description
Swing Check Valve Specifications: 1) Construction features: Bolted, cover, swing type disc, threaded, or welded seat ring 2) Standard compliance: A) Basic design: BS 1868 B) Face to face dimension: ANSI B16.10 C) End to end dimension: ANSI B16.10 D) Flanged ends: I) 2 - 24" to ANSI B16.5 II) 24" to MSS SP-44 III) API 605 on request IV) B. W.
Ends to ANSI B16.25 E) Shell wall thickness: I) 2 - 24" to API 600 II) > 24" to manufacturer's standard 3) Manufacturing to NACE MR 01-75 on request
Wafer Check Valve Product Description Features and Specifications: Available in Single/Dual Plate
Design standard: ASME B16.34/API 594/API 6D Face to face: API 594/API 6D Connection ends to ASME B16.5/ASME B16.47 Pressure-temp: ASTM/ANSI B16.34 Inspect and Test: API598 Sizes: NPS2 -48 in Pressure Ratings: CL150~CL2500
Materials WCB, WC6, WC9, LCB, LCC, CF8, CF8M, CF3, CF3M Alternative body and trim materials are also available on request
Standard: API, GB
