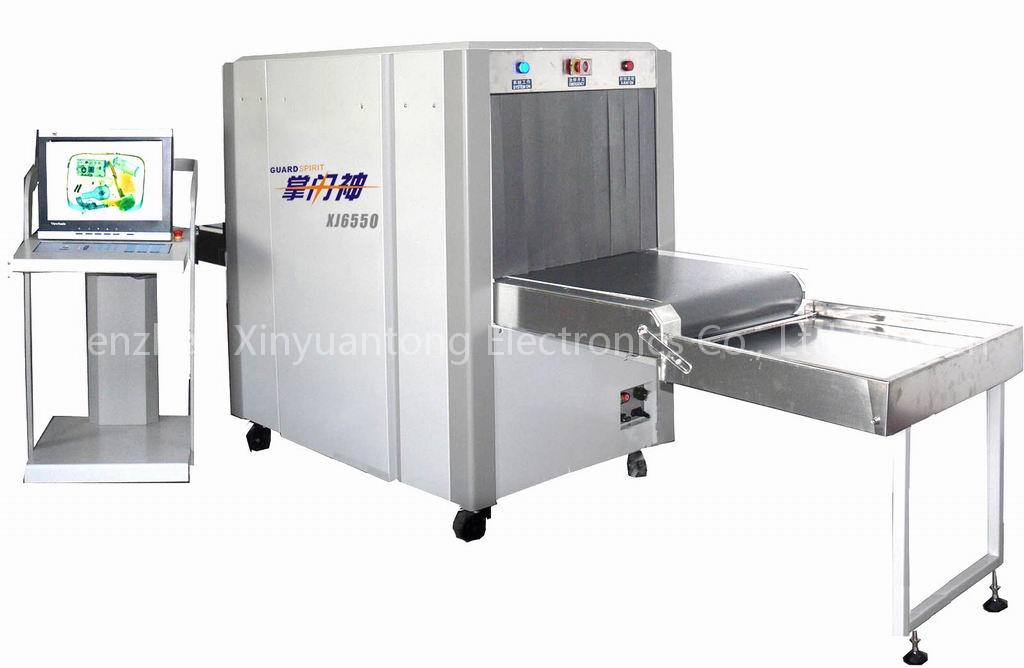

Surveillance Security system x-ray scanner

u Tunnel Size…………………650(W)*500(H)mm

u Conveyor Speed……………0.20m/s

u Conveyor Max. Load………100kg

u Penetration…………………32mm steel

u Resolution…………………Diameter 0.09mm metal wire

u Radiation Leakage………….Less than 1.0uGY/h (at a distance of 5cm from external housing)

u Dose Per Inspection……...≤1.2μGy,ISO1600 film security certification. Complying with published international standards

u X-ray Sensor………………Dual Energy L-shaped photodiode array detector

u X-ray Anode Voltage…….. 140Kv

u X-ray current………………....0.7 MA

u Image Grey Level…………65536(16 Bits)

u Image Presentation………..B/W, pseudo color,

u Image Disposal Function………image recall, penetration and edge enhancement, negative image, inorganic and organic stripping

u Image Storage…………………..10000pictures real time storage

u Image Max. Resolution………...1024*768pixel

u Select Region and Enlarge………Magnification Times 2,4,8

u Operating Voltage………………220VAC±10%V

u Operating Power………………..0.70KW

u Operating Temperature…………0°C~45°C

u Storage Temperature……………-40°C~+70°C

u Relative Humidity………………10%~95% (Non-condensing)
