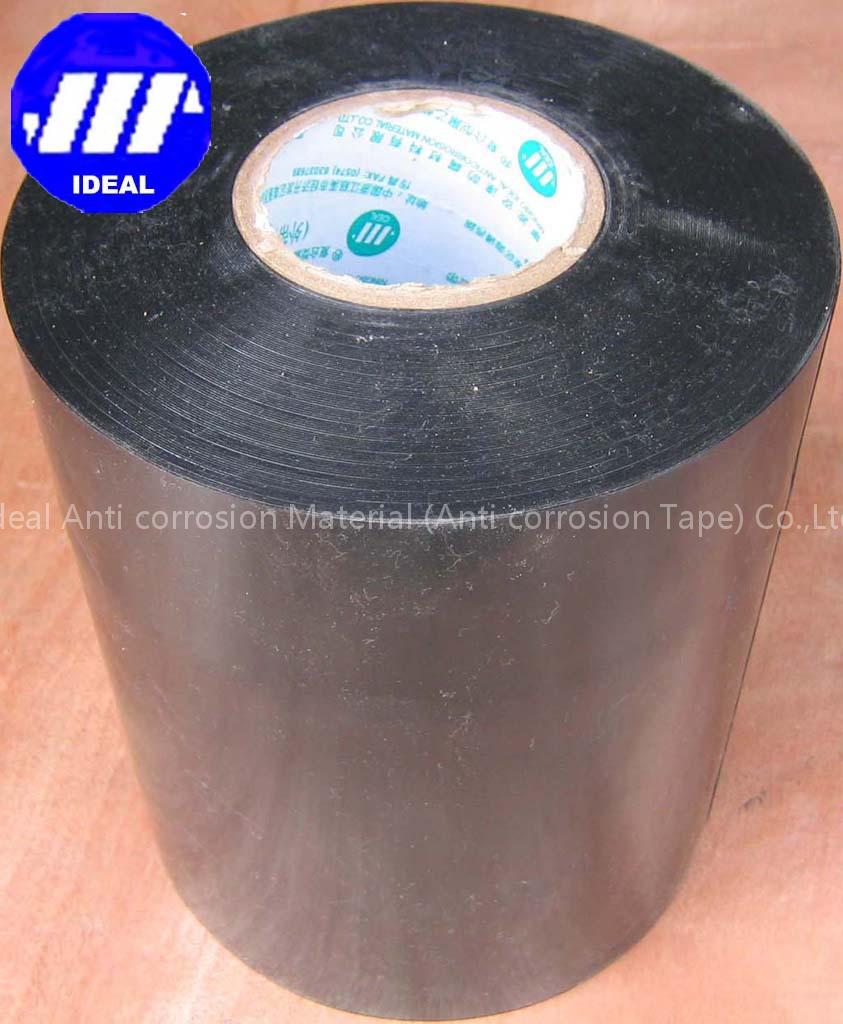

Surface Protection Tape
Specifications
- Brand
- nbideal
- Origin
- P.R.China.
- Price Term
- FOB
Surface Protection Tape is a Adhesive tape product. Key specs — Brand: nbideal; Origin: P.R.China.; Price Term: FOB.
Product Description
The T-200 series is cold applied tape coating systems for Protection of the pipe and its T-100 Series surface from damages. The Adhesive is a key in ground performance characteristic coupled with the low and high density polyethylene backing. This kind of tape can be applied by hand or with a wrapping machine.
Product Advantages:
Heavy duty adhesive.
Conformable to irregular shapes.
No release liner.
Established in ground history.
Complies with AWWA (American Water Works Association) C-214 standard.
Compatible with general coating systems.
T-200 Outer Tape (Surface Protection Tape, Surface Protection Tapes, Corrosion Protection Tape) series Coating Systems with AWWA C-214 Standard:
Type of the tape: | T-240 | T-250 | T-265 | T-280 | T-2100 | T-2130 | |||||||
Thickness: (ASTM D 1000) | Total | mm | mil | mm | mil | mm | mil | mm | mil | mm | mil | mm | mil |
0.38 | 15 | 0.51 | 20 | 0.64 | 25 | 0.76 | 30 | 1.02 | 40 | 1.27 | 50 | ||
Film | 0.28 | 11 | 0.38 | 15 | 0.51 | 20 | 0.63 | 25 | 0.64 | 25 | 0.76 | 30 | |
Adhesive | 0.10 | 4 | 0.13 | 5 | 0.13 | 5 | 0.13 | 5 | 0.38 | 15 | 0.51 | 20 | |
Tensile: | 29 lbs/in | 39 lbs/in | 39 lbs/in | 53 lbs/in | 66 lbs/in | 78 lbs/in | |||||||
Length: | 60 Meter | 50 Meter | 40 Meter | 30 Meter | 25 Meter | 20 Meter | |||||||
Width: | 2, 3, 4, 6, 9,12 | ||||||||||||
Colour: | Black, White, Red, Blue, Purple, etc. | ||||||||||||
Elongation: | 300% | ||||||||||||
Adhesion to Inner Layer T-100 (ASTM D 1000) | 46 oz/in, 5N/10mm | ||||||||||||
Cathodic Disbandment: (ASTM G8) | 0.25 in radius 6.4 mm | ||||||||||||
Water Vapor Transmission Rate: (ASTM F1249) | 0.2g/100in2 /24h, 0.3mg/cm2/24h | ||||||||||||
Water Absorption: (ASTM D570) | ≤ 0.1 | ||||||||||||
Volume Resistively: (ASTM E257) | 2.5 X 1012 ohm·cm | ||||||||||||
Dielectric Strength: (ASTM D 149) | 40 KV | ||||||||||||
Temperature Range: (Normal in Ground Service) | -30 to 160 oF, -34 to 71oC | ||||||||||||
