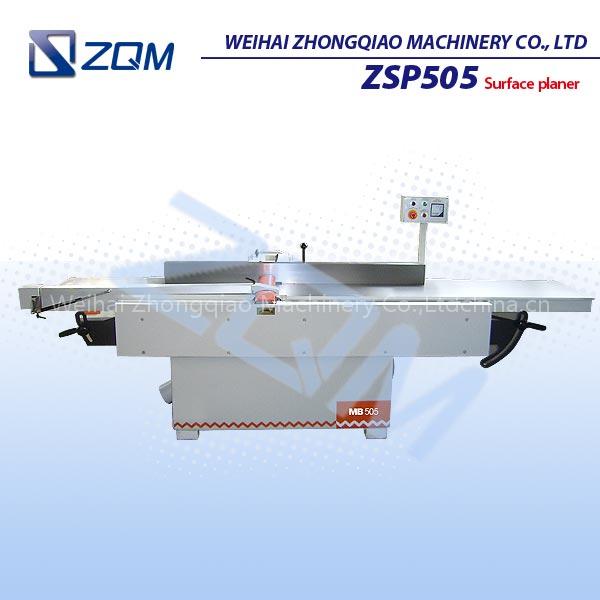

Surface Planer Zsp505
Listing ID#10161785
ModelZsp505
CategoryWoodworking Machinery
Woodworking Machinery

Surface Planer Zsp505

Specifications

Brand
ZQM
Origin
China (Mainland)
Request Quote
Quick answer

Surface Planer Zsp505 is a Woodworking Machinery product. Key specs — Brand: ZQM; Origin: China (Mainland).

Product Description

ZSP505 &504 is specially designed for our Italian customer, is the newest model SURFACEPLANER which is developed by ZQM. It follows the newest European standard, and is sold well in European market.

It has tight frame and novel appearance, compared with traditional surface planer, it equips with high-mounted witch and bridge guard.

PARAMETER
Model ZSP504 ZSP505
Max. planning width(mm) 410 520
Total table length(mm) 2600 2940
Front workbench length(mm) 1440 1732
Max. cutting depth(mm) 8 8
Planing arbor rotation speed (rpm) 5000 5000
Planing arbor diameter (without blades) (mm) 120 120
Cutting circle diameter (mm) 123 123
Rip fence size (mm) 1200 x 180 1450 x 180
Fence tilting angle 45degree 45degree
Motor power (KW) 4 5.5
Net weight (kw) 800 920
Overall dimension(cm) 260 x 45 x 80 294 x 55 x 80
