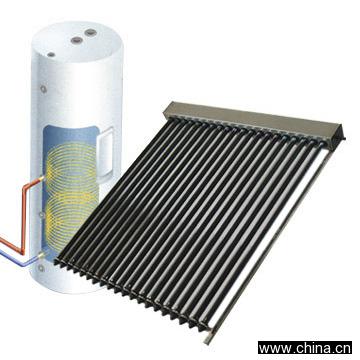

Subsidiary Solar Water Heater

Model No.:HS4304 Product Origin:China Brand Name: Price Terms: Payment Terms: Certification: Description:The system can be mounted on the southern roof of the villas, on the courtyard lawn, or the southern slope of the construction. The hot water can be delivered to any floor without limitation.

The system has adopted the forced circulation (automatic control) work module to control the temperature automatically and deliver water by pressurization. So it has solved the long time inconveniences of manual operation. The system only needs small amount of investment, and it's easy to handle.

Moreover, it's safe, convenient and energy saving, causing no pollution to the environment, so it's complemented as "Green Project" by the experts.

The principle of the system:1) The collector applies the fourth generation of solar collector---heat pipe vacuum collector to transfer the solar power to heat energy2) When the temperature of TC is higher than that of TR, the controlling device will start the circulating pump3) The circulating pump make the working medium circulate in the system4) The heat is transferred from the heat collector to the water tank by the heat exchanger5) During the working process of the circulating pump, when the temperature difference is less than a set point, the circulating pump will stop6) When TR (the temperature of the water tank) reaches the highest set point, the controlling device will close the circulating pump7) The electrical heating device will automatically make the temperature of the above part of water tank stay at the set point
