Submersible slurry pump

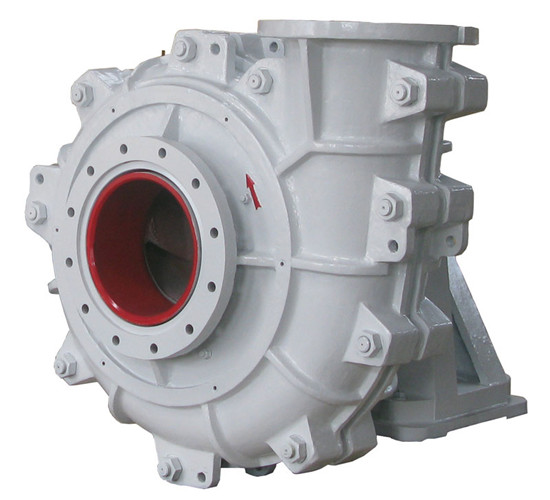

RGM series sand&gravel pump is a single stage, single casing, centrifugal horizontal pump. Sand&Gravel pumps are designed for continuously handling the most difficult higher abrasive slurries which contain too big solids to be pumped by a common pump. Large flow path make pump allow large particle solids. Simple structure and high chrome alloy liner make the sand&gravel pump long life and easy maintenance.

Discharge Diameters 4” to 16” (100mm to 400mm) Heads Range 230ft (70m) Flow rate 8,000gpm (4,100m3/h) Casing Pressure Tolerance 300psig (2,020kPa) Max Particle Size: 330mm PH: 5-12

Applications - Large particle applications - Mining - explosive sludge in metal smelting - dredge the waterway - grudging in dredger and course of river - sugar beet - Barge loading - Suction hopper dredging

Features -Good discharge capacity and NPSH -single casing structure coupled with the cassette shell -High strengh frame, large shaft diameter, used in the heavy duty industry -The inlet/outlet is alternative flange, the pipline is easy to install - Liners material: A05 A07 A33 A49 etc - Driven Type: CR ZV CV - Seal type:gland seal, expeller seal, machanical seal - Discharge direction can be positioned at any intervals in 360 degrees
