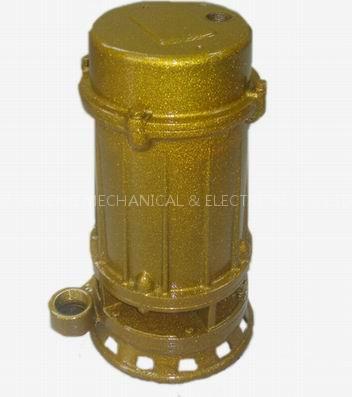

Submersible Pump (QDX)

Advantages: The motor of QX submersibile pump, which is centrifugal impeller and helicoid structure, is installed at the upside. Double sides between pump and motor are sealed with mechanical sealer.

Range of Application: Because of small bulk, less weight, the pump are especially applied to lifting water from well, agriculture irrigation and draining, adding oxygen, feeding water and draining water for breeding farm at rural area, garden sprinking irrigation, feeding water for hotel, mess, high building and etc.

Q D X 1.5 - 3 - 0.85 ：Q: submersible pump D: single-phase(three-phase without "D") X: downside pump 1.5: nominal flux 3: nominal head 0.85: motor nominal power
