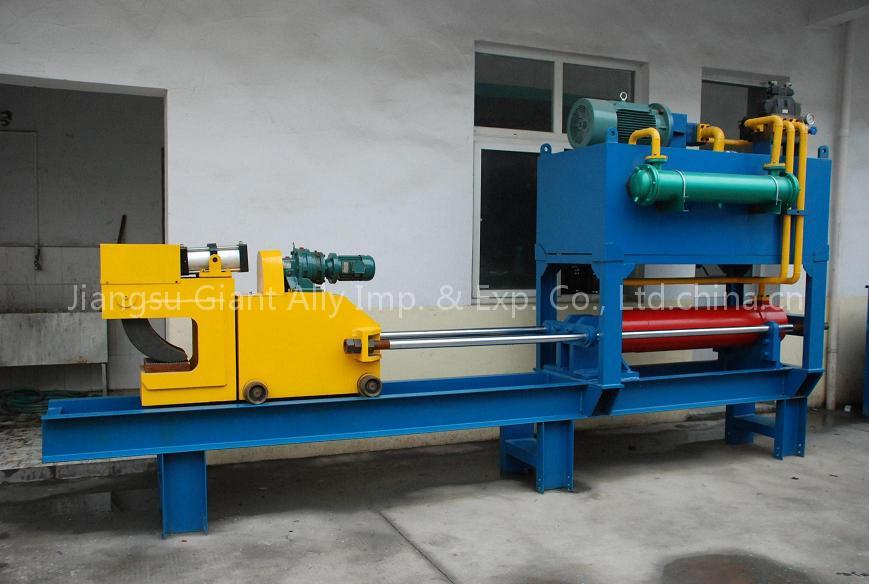

Stretcher

Detailed Product DescriptionStretching is one of the most critical post-quenching opera-tions in the extrusion process:Performing that function correctly often makes the difference between usable product andscrap. An overstretched profile will be out of tolerance; a profile that is not stretched to its yieldpoint will snap back unstraight-ened.

Both are destined to become scrap.Giasnun stretchers deliver precise, accurate stretching,which enhances profile quality and keeps scrap to a used in conjunction with our belt systems, our stretchersstraighten and batch profiles for efficient downstream operations,increasing throughput as well.Drawing&straightening unit with manual pulling-in device working force:15-40T Applying machine type:500-1400T(5-15MN) Type of jaw:die type and hook type pulling in:manual Large,medium-sized drawing&straightening unit Working force:40-360T Pulling-in mode:pneumatic,hydraulic Fully auto-frawing&straightening unit(with auto-passage) Fully auto-aluminum profile control sensor,gear Gear location:single man operation
