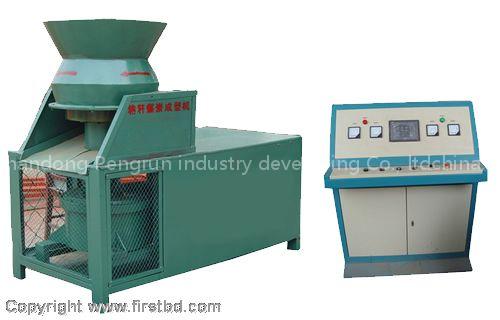

Straw Briquette Machine is a Agriculture product. Key specs — Origin: china.
Product Description
Feature Products
1. high efficient
2. high output
3. low price
4. easy operation
5. long lifetime
6. energy saving
7. easy maintenance
Product Description
Straw fuel can replace the wood, coal and Liquefied gas, etc., widely used in Living stove, heating furnace, hot water boilers, industrial boilers, biomass power plant and so on.
This machine shows the advantages of high automaticity, low electricity consumption, low price, high capacity and easy movable operation. And diesel engine is available.
Raw materials: All kinds of straw materials, just like crop stalks, wheat straw, grass, powder materials and 50mm diameter solid materials.
1. Overview of straw fuel
Adopting the new technologies and professional equipments, biomass solid fuel from crop stalks, wood chips, sawdust, peanut shells, corn cob, rice straw, wheat bran, branch leaves, etc by compression and carbonization is formed into the clean fuel, that is the emerging biomass fuel, which is also directly used for the city boiler fuel to replace the traditional coal.
2. Features of straw fuel
Its volume is 1/30 of the raw materials, and the specific gravity is 10-15 times higher than that of the raw materials, the density is 0.9-1.4g/cm3, and its heating value is about 3500-5500 great calorie. It is the high volatile solid fuel.
3.Applied scope of straw fuel: Straw fuel can replace the wood ,coal and Liquefied gas, etc., which is widely used in Living stove, heating furnace, hot water boilers, industrial boilers, biomass power plant and so on. The objects are used for burning purposes.
Technical datas:
Model: JG-1000
Power: 22 kw
Capacity: 800-1000 kg/h
Diameter of final product: 20-32 mm, Cylindrical
Density: 0.8-1.4 kg/m3
Moisture of materials: 10-25%
Length of materials: 3-10 mm
Overall Dimensions: 2x1.2x1.8 m
Packing dimensions: 2.2x1.1x1.8 m
weight: 900/1000 kg
