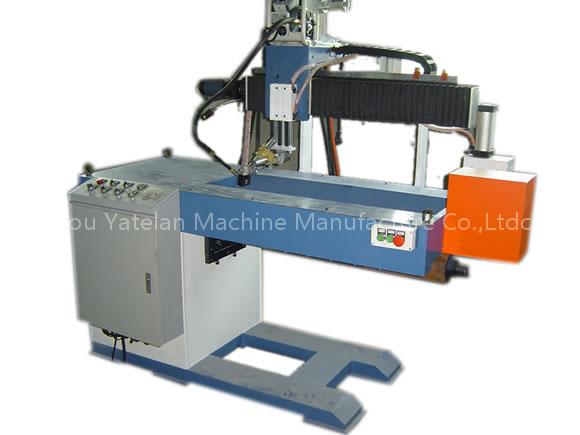

Straight seam welder

product information :
Straight seam welder
Specification:
Model number:ZF500-2500
(1)High quality
(2) Easy to operate
(3) Stable performance
Welding special machine/welding machine/welding equipment

(1) can weld automatically with specialized welding clamp and corresponding welding source
(2) clamped by keys and running speed is continuously adjustable
(3) electrical control system is stable and reliable and can be matched with centering device
(4)it is suitable for variety of processes and welding
(5)widely used in welding of stainless steel kitchen ware ,muffler,pipe manufacturing ,chemical containers etc

Model rated capacity Air pressure range working diameter working length working thickness
ZF500 2.5kw 0.2Mpa-0.6Mpa 60mm above 50mm-500mm 0.3mm above
ZF800 6.5kw 0.2Mpa-0.6Mpa 120mm above 50mm-800mm 0.3mm above
ZF1000 6.5kw 0.2Mpa-0.6Mpa 120mm above 50mm-1000mm 0.3mm above
ZF1200 6.5kw 0.2Mpa-0.6Mpa 120mm above 50mm-1200mm 0.3mm above
ZF1500 6.5kw 0.2Mpa-0.6Mpa 120mm above 50mm-1500mm 0.3mm above
ZF2500 6.5kw 0.2Mpa-0.6Mpa 120mm above 50mm-2500mm 0.3mm above
