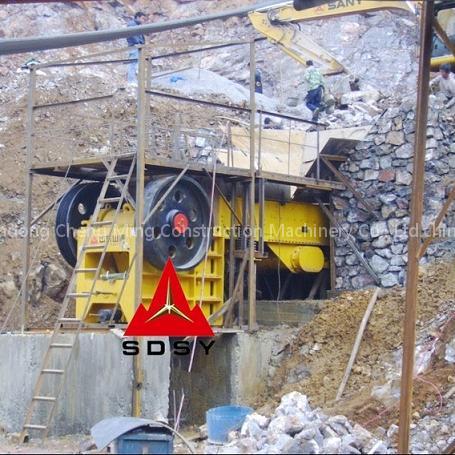

Stone Plant ,Stone Machinery
Specifications
- Brand
- shandong shanyuan
- Origin
- Shandong,China
- Price Term
- FOB
Stone Plant ,Stone Machinery is a Furniture Making Machines product. Key specs — Brand: shandong shanyuan; Origin: Shandong,China; Price Term: FOB.
Product Description
Characters of Stone Plant of Jaw Crusher Machine:
1. Feeding granularity is big, breaking ratio is big, and Outturn is large.
2. The operation is stable and reliable, fixed with over-loading protective device.
3. The energy consumption is low, the wearing parts are little, and the maintenance cost is low.
4. The adjusting parts are reinforced emphatically and finish machining, reducing repair frequency.
5. The bearing parts adopts with multilayer labyrinth seal, prolonging its operation life.
6. Using modules lubrication, which is easier and more convenient for the maintenance.
7. The belt pulley adopts new locking craft, keyless connection, making maintenance more convenient.
Applicability of Stone Plant of Jaw Crusher Machine:
1. Widely applied to all sorts of ore, rock, etc., the breaking compressive strength not exceeding 320Mpa.
2. Being widely used in mine, metallurgy, roads and bridges, building materials, water conservancy and chemical industry etc.
Specifications of Stone Plant of Jaw Crusher Machine:
MODEL | Max. Feed Size (mm) | Discharge Size(mm) | Capacity (t/h) | Motor power (KW) |
PE-400X600 | ≤340 | 40-90 | 15-40 | 30 |
PE-500X750 | ≤420 | 50-100 | 20-52 | 55 |
PE-500X750II | ≤480 | 50-110 | 20-80 | 55 |
PE-600X900 | ≤520 | 65-130 | 50-150 | 75 |
PE-700X1000 | ≤600 | 70-140 | 80-170 | 90 |
PE-750X1060 | ≤630 | 80-140 | 100-180 | 110 |
PE-800X1100 | ≤700 | 100-200 | 120-230 | 110 |
PE-900X1100 | ≤800 | 100-200 | 130-250 | 132 |
PE-900X1200 | ≤800 | 100-230 | 180-280 | 132 |
PE-1000X1200 | ≤900 | 140-250 | 200-400 | 132 |
PE-1100X1300 | ≤1000 | 170-280 | 300-600 | 160 |
PE-1200X1500 | ≤1100 | 180-300 | 400-800 | 160 |
