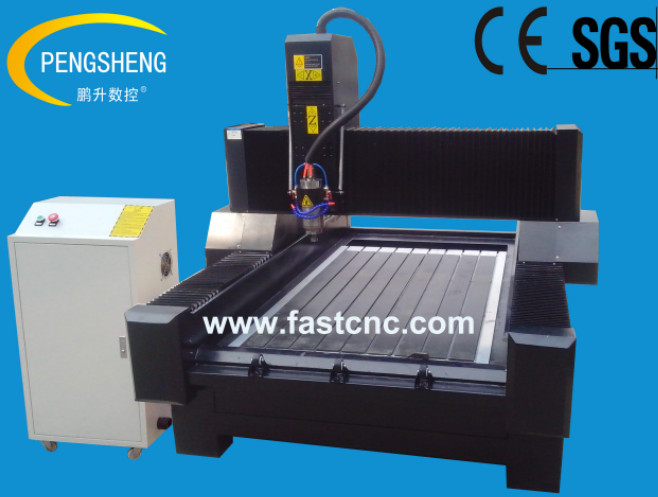

Stone CNC Router PC-1318SS

Feature: 1. Lathe bed is welded with thick square tube and is processed by high temperature tempering treatment,good rigidity and heavy loading.T-slot structure,it can be loaded 6 tons. 2.

Three axes adopt imported high precision Taiwan square orbit;X and Y axes adopt rack and pinion transmission,fast working,high efficiency and low cost;Z axis adopts imported ball screw,with high precision and long life time. 3. Well compatibility:CAD/CAM designing software e.g. Type3/Artcam/Castmate/Wentai etc. 4.

It has the function of re-carving after break point and power failure 5. It has the function of forecasting process time. 6. Adopting advanced DSP system with USB connection,operated with the handle,convenient operation.Our engaber can completely work off-line and do not take any computer resources. 7. Auto oiling system 8.

Adopt imported linear square orbit,highprecision,heavy loading and long lifetime. 9. The machine has water tank and automatic water cooling system. 10. Waterproof and dustproof design for the machine protects the transmission parts from broken.

Technical Parameter: Model PC-1318SS It can be customized X.Y working area(mm) 1300*1800 Z working area 300mm Resolution 0.01mm X,Y structure Rack and pinion transmission Z structure Imported ball screw Max speed 30m/min Spindle power 4.5kw(constant power rate spindle) Spindle rotating speed 0-24000r/min Cooling mode Water cooling Working voltage AC380V/50/60 Hz ,3PH Drive Motor Stepper Command G code*.u00*.mmg*plt Operating system DSP(with separate operation cabinet) Interface USB Diameter of cutter 3.175--12.7 Applicable Industries: Stone industry :engraving various granite,bluestone,marble,gritstone,soapston and etc.

Metal processing industry. Applicable Materials: All kinds of stone,such as marble,granite,artificial stone,metal materials.
