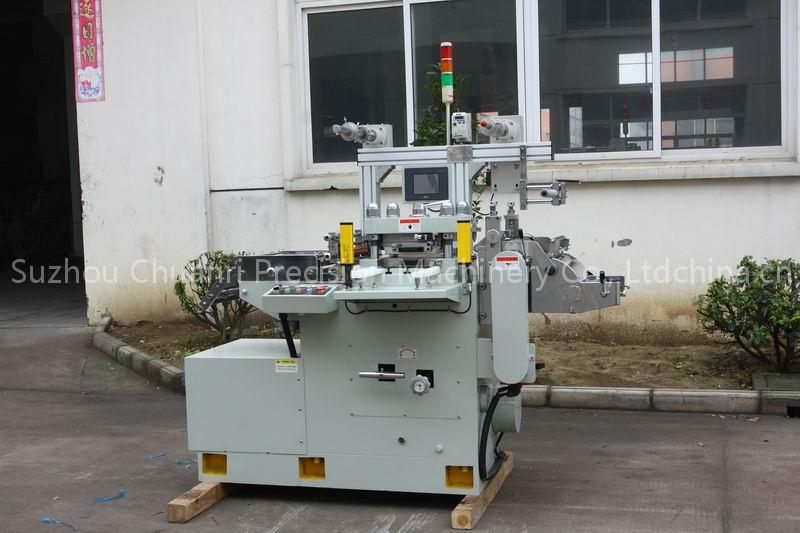

Sticker Label Paper Die Cutting Machine

Model 270 multi-functional automatic single electric outlets die-cutting machine

Max Feeding Width ( mm ) 270

Cutting Area ( mm ) 200*260

Cutting Speed ( T/M) 30-180

Position Accuracy ( mm ) ±0.10

Power of Main Engine ( kw ) 2.2

Size ( mm ) 2600*1250*1650

Voltage (V ) 220

Scope applicable:Various insulating materials such as self adhesive material, protective film, electronic shield materials, PVC, film, Mylar, copper foil, aluminum foil, foam, etc. And LCD module parks: reflector, diffuser, gaskets, silicon tape.Functional characteristics:1.

Automatic processing for feed-in, filming, die cutting, waster draining, slitting, rolling, all of them are completed by the computer control by one turn.2. Roll to roll product making process, 12000 times per hour, the finished products can be in sheet shape or roll shape.3.

Second time material jointing and die cutting by using computer, controlled servo motor system by order.4. Provide quiet working environment.5. Infrared safety-guard system ( machine stop running automatically under the condition of block).6. Can assemble hardware die.7. Fields of applying: electronic, IT, Auto.
