Stepper motor hot ink rotary coding printer

We, the 3SUN are a professional manufacture specializing in the solid ink coder and hot foil coder ,located in Xinxiang Henan ,China, always aims to supply fine quality competitive price products and entirely satisfied service for our clients.

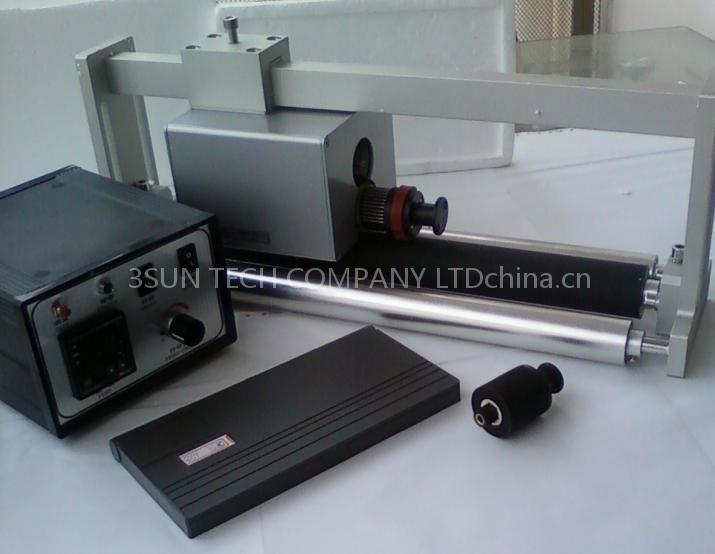

CP-1100 Ink Roll Coder installing on all kinds of horizontal and vertical packing machines for automatic printing production

With the photoelectric signal tracing , it can guarantee the high coherence of the printing position . Besides , CP-1100 can print more lines with wider printing areas to better meeting customers’ requirements.

Printing Type

Automated printing using ink rollRange of Application , Purpose built for installing on all kinds of horizontal and vertical packing machines for automatic printing production date, lot/batch number and other related information.

Installation Method

The mounting bracket is to be custom built to meet the various mounting position for the coder on different packaging machine in order not to interfere with the proper running of the packing machine.

This coder is an updated coder with novel design for mounting in any attitude on most continuous and intermitten motion horizontal and vertical form , fill, and seal (HFFS&FFS) packaging machines , it prints out clear production date/lot number automatically ,CP-1100 is with compace size , convenient installation, high speed printing , widely printing are optional type inserting, etc. It is a good choice for the field of food , pharmacy industrial.

Specification

Max Printing Speed 300 times/min (Synchronized with the packaging machine)

Printing Space beyond 38mm (4 sets type holder) beyond 70mm(2 sets type holder)

Printing Lines T-characters within 13lines , Maximum 20 characters

R-characters within12 lines, Maximum 13 characters/line

Font Size 3.5mm 4.5mm 5.5mm ( other can be custom-made)

Ink Roll Size 36*32mm 36*40mm

Electrical requirement 220V 50Hz 100w

Weight 11.5Kg

Print Area Axial 40mm

Radial 45.5mm

Max. Line T-type 13 lines Max. 20 characters/line

N R-type 10 lines Max. 13 characters/line

Type T-type 1.5, 2.0 , 2.5, 3.0mm(w) * 3.5mm(H)

R-type 3.5mm(W)*3.5, 4.5 ,5.5mm(H)

Cycle Rate Up to 300 cycles/minute

Surface Speed Up to 50 meters/minute

Min.print space 70mm for 2-up Type Holder

(select one) 38mm for 4-up Type Holder

Type Rotation Direction Clockwise (Fixed)

(select one) Counter clockwise (Fixed)

Temperature Controller

Type Digital display

Ink Roll 36*40mm

Electrical AC220V+10V, 50/60Hz, 1Ph, 130W, 2A

Environmental Operating Minimum 4 celsius

Temperatures Maximum 40celsius

Relative Humidity Minimum 10.%

Maximum 95% (non-condensing)

Weight Print Head : 2.0Kg

Control Box : 1.0Kg

Dimension Print Head :120mm*100mm*140mm(L*W*H)

Control Box :180mm*160mm*125mm(L*W*H)
