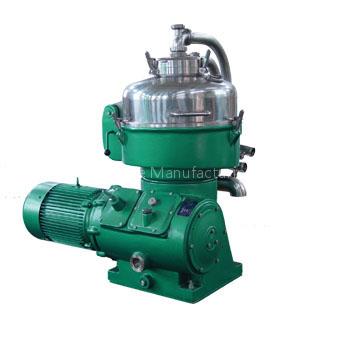

Starch Disc Separator

The starch separators are disc separators with high speed and continuous

nozzle discharge. They are mainly used for purifying starch,(tapioca, maize starch) previous

concentration, separating protein and recovering starch in starch production

and also separating two-phase liquid-solid, recovering concentration or

purifying, such as bleaching earth, recovering pulp and waste water.

All the parts of the separator contacting the materials are made of stainless

steel, therefore meet the requirement of food hygiene.

The design, production and acceptance check are complied with JB/T6419

for disc starch separator.

Specifications 1) Capacity: 15-30m3/h

2) Motor power: 30.0kW

3) Weight: 1,327kg

4) Overall dimensions (L x W x H): 1450 x 1120 x 1470mm
