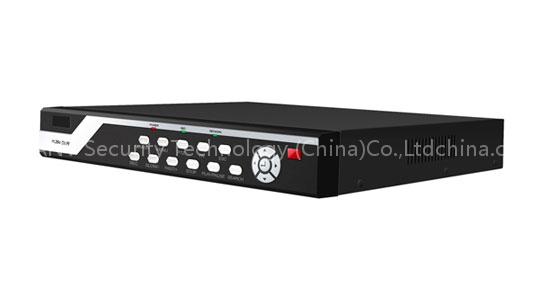

Standalone DVR is a Surveillance Products product. Key specs — Origin: China; Price Term: EXW.
Product Description
Model AOP-3708HS Video System NTSC PAL (auto detection) Video Compression H.264 Video Input BNC*8 (Composite signal 1.0Vp-p 75Ω ) Video Output (BNC) BNC*1 (Composite signal 1.0Vp-p 75Ω ) Video Output (VGA) Built-in VGA interface(1024*768, 800*600) Video Record Frame Rate NTSC:30fps/ch, PAL:25fps/ch Video Record Frame Rate (max) NTSC:240fps,PAL:200fps D1:720*480(NTSC) 60 fps,　 720*576(PAL) 50 fps, Video Record Resolution Half D1:720*240(NTSC) 120 fps,720*288(PAL) 100 fps CIF:352*240(NTSC) 240 fps,　 352*288(PAL) 200 fps Audio Input/Output 8ch (RCA) 1ch(RCA) Operationg Mode live display, record, playback, backup, network Recording Mode Manual, Time, Motion, Alarm, Remote Alarm Input/Output 8ch Input, 1ch Output PTZ Camera Control YES (Pelco-D & Pelco-P) Motion Detection Sensitivity Four adjustavle parameters for accurate detection HDD Storage 1 SATA HDD, 2000GB supported USB Flash Drive Backup YES (2PC USB2.0 interface) Network Interface 1 pc RJ45 10M/100M Ethernet interface Network Protocol TCP/IP, UDP, , NTP, DHCP, DDNS(Dynamic IP) Network Function IE remote monitor, control, setup, playback CMS - Central Management System YES (Maximum:16 different IP addresses) IR Remote Control YES Multilingual OSD YES Power Source DC 12V Power Consumption 20 ~ 42W Working Temperature –10°C ~ 50°C Working Humidity 10% ~90%
