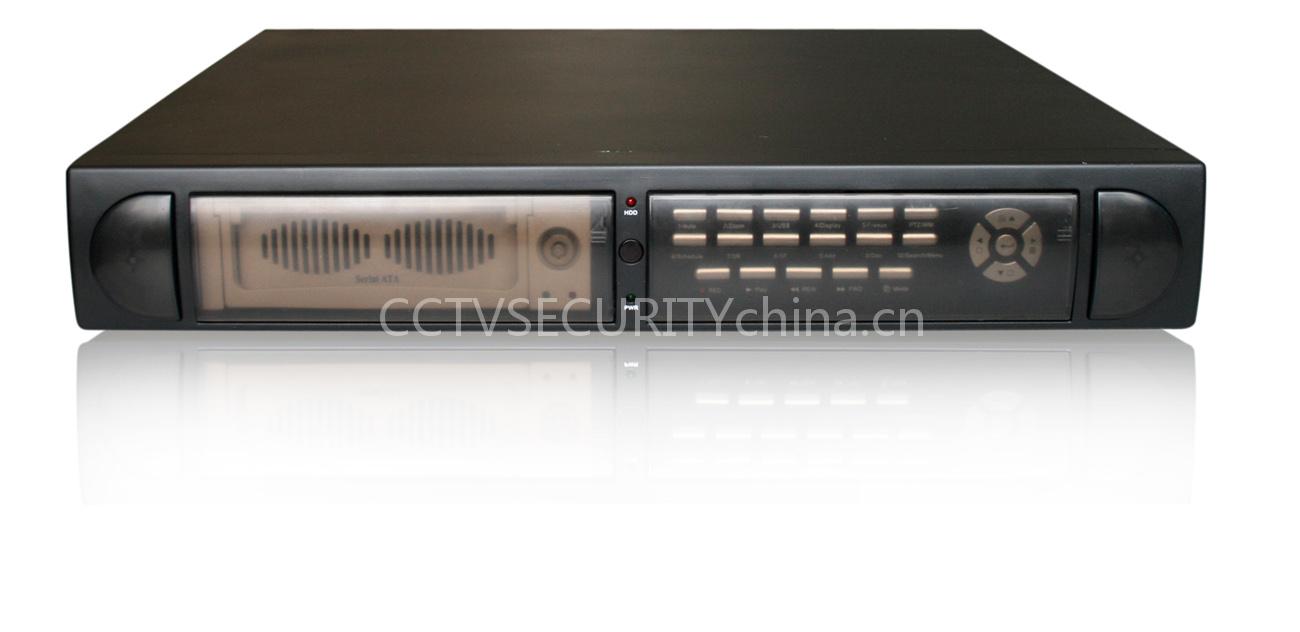

Stand alone DVR is a Surveillance Products product. Key specs — Origin: China.
Product Description
Feature H.264 real-time high compression, support dual stream network transmission Stand-alone Linux2.6 operation system Graphics & Windows OSD interface Support CIF recording resolution ADPCM audio compression Support triplex operation: record, playback, net transmission Triplex control methods: USB mouse, remote controller & keypad on front panel Support remote view with Mobile Phone Support to backup & upgrade with USB flash disk Support up to 4 x 1TB SATA HDDs Support to real-time remote view with IE (Internet Explorer) Support to transmit audio via network Support PTZ control via built-in RS-485 port Selectable packing time for recording files System Auto Recovery After Power Reconnected Remote Alarm Notification via Email Images Support motion detection & sensor triggered recording Video loss alarm function Point to point intercom Optional VGA output Specifications Model D8316V Video Compression H.264 Video System NTSC / PAL Operation System Linux Video Input / Output BNC 16-channel inputs / BNC 1-ch main video out, 1ch spot video out VGA 1-channel output Audio Compression 8k Hz*16bit ADPCM Audio Input / Output BNC 4-channel inputs / 2-channel outputs VGA 1-channel output Intercom Input BNC 1-channel Monitoring Resolution PAL: D1(704x576) / NTSC: D1(704x480) Playback Resolution PAL: CIF(352x288) / NTSC: CIF(352x240) Display Frame Rate PAL: 400fps / NTSC: 480fps Total Recording Frame Rate PAL: / NTSC: Recording Mode Always / schedule / motion detection / sensor triggered Display Mode Single / Quad / Nine / Hex / PIP / S.E.Q.
Recording Pack Time 15/30/45/60mins selectable HDD Interface Default: 3*SATA fixed HDD & 1*SATA removable HDD (support up to 1TB for each) With DVD-RW: 1*SATA fixed HDD Network Interface RJ45, 10M/100M Network Protocol Support TCP/IP, UDP, DHCP, DNNS, PPPoE Network Function IE viewer / Live monitoring / DVR setting / Mobile phone & Email function Mobile Phone Function Support Symbian S60 3rd edition system / Windows Mobile Support to view 1-channel at the same time with Channel Switch function
