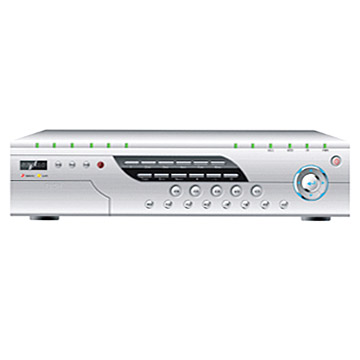

Stand-Alone DVR System

Product Name: Stand-Alone DVR SystemModel Number: HB 6000 SeriesPlace of Origin: ChinaHB-6000 series are embedded digital video recorder systems designed for digital security monitoring, which have 1/2/4/8/16 channels mode switches. They are applied in different environments that need long term monitoring and recording.

All modules are integrated into one single board including video/audio acquisition, compression, storage, networking, camera controls and motion detections etc. The devices are highly integrated and reliable. They also provide various network interfaces based on TCP/IP protocols.

Clients could connect with them via network or Internet; users could preview and control the remote site wherever they are located. Last but not least, the systems are easy to use. HB-6000 series uses H.264 video compression standard and G.729 audio compression standard. Video and audio can be kept entirely synchronous.

Video resolution can be CIF or Half D1 and the video frame ratio can also be continuously adjustable which can be up to 25 frames/sec (PAL) or 30 frames/sec (NTSC).

Features System: 1) CPU/OS: 32-bit high performance embedded processor and real-time embedded operating system, ensures the real-time processing, reliability and stability of the system 2) REC mode: 4 recording modes (manual, schedule, motion detect, alert triggered) 3) Playback: provides facilitated searching and playback operations, multi-grade fast forward, fast backward and frame by frame playback 4) Preview: provides 1/4/9/16 channels preview and playback does not interfere recording 5) Control mode: users can access and control the system by using front panel, infrared remote control or through remote network 6) File format: supports standard FAT32 file system format and the format can be recognized in PC 7) Network: a) Supports TCP/IP protocol (includes ARP, RARP, IP, TCP, PPPOE, DHCP) client users can set up, browse video data, view system status, store remote live video stream, and even control cameras through network, even by IE b) Supports PPPOE, dial automatically again at the same time and support domain name mapping 8) Alarm: video lost alarm and alert input/output interface 9) Motion detection: each channel has 64 motion detect regions, sensitivities are separated into 10 grades 10) Video masks: provides video masks, each channel of video has 64 mask regions 11) Upgrade: supports network upgrading, facilitating further upgrading, maintaining and extending 12) Security: various security functionalities including system lock-up, password checking and user authorizing Specifications: Video specifications: 1) Encoder: a) Real time encoding H.264 base profiles b) Supports six levels image quality 2) Video resolution and scan rates: (compression) CIF format, half D1, (preview) up to NTSC 720 x 480, PAL 720 x 576 3) Video bit rate: 80kbps-2Mbps 4) Frame rate: 1-30 frames/sec (NTSC), 1-25 frames/sec (PAL) 5) Video in/out: composite video/BNC 1VP-P, 75 ohms PAL/NTSC Audio specifications: 1) Encoder: G.722 audio bit rate 8Kbps 2) Audio in/out: RCA: 0-100mV, 10K ohms 3) Power supply: 220/110V, 50/60Hz 4) Power consumption: 15W (2ch), 20W (4ch), 30W (16ch) (hard disk not included) 5) Connector (hard disk): a) 2/4/8-16 channels systems provide 1/2/4 IDE channels, and the system may have 2/4/8 hard disks, supports hard disk larger than 137GB b) Two SATA hard disk drives for backup (for 4/8/16 channels DVR only) 6) Network: 10M/100M self-adapting Ethernet port 7) RS-485: one RS-485 interface can be used to control cameras or motors 8) Systems have various built-in communication protocols 9) Alarm in/out: 2/4/8-16 alert inputs for 2/4/9 channels, 2/4 alert outputs 10) VGA/out: a) Frequency: 60-85Hz b) Resolution ratio: 480 x 320 - 1,024 x 768 11) Dimensions (HB6201/HB6102): 190mm width, 380mm depth, 15mm height
