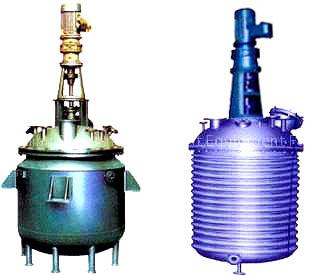

Name: Stainless steel reactor
Brand: Mingyan, Taihu Petrochemical

Features of the Stainless steel reactor

Our company produces (electric, vapor, oil heating) stainless steel reaction kettle composed of kettle lid, cylinder body, jacket, stirring machine, shaft-end conveying system and supporting bearings. Kettle body and ports that contact materials are all made from OCr18Ni9 or 1Cr18Ni9Ti acid-resistant stainless steel plates.

We are professional in manufacturing stainless steel reaction kettles and ready to undertake production of equipment in chemistry industry and non-standard equipment in light industry. Any inquiry is welcome.

The stirring methods of the kettle include traditional paddle stirring, turbo stirring, push stirring, anchor stirring, frame stirring, helical stirring and saw disk stirring, etc.

We especially recommend high shear emulsifying reaction kettle, one combining frame stirring and high shear emulsifier and wall cleaner. The outstanding point of this reactor is the integration of dispersing, mixing, emulsifying, homogenizing and shredding, featured with super fineness, high quality and efficiency.

Heating stainless steel reactor

Nominal capacity L	Electric power	Inside diameter of the pot	Jacket diameter	Reducer models	Motor n/kw	Stirring speed r.p.m
Nominal capacity L	Electric power	φmm	φmm	Reducer models	Motor n/kw	Stirring speed r.p.m
50	4×2 KW	φ400	φ600	BLD 0.8-1	1450/0.8	60-100
100	6×2 KW	φ500	φ700	BLD 1.1-1	1450/1.1	60-100
300	6×4 KW	φ800	φ1000	BLD 2.2-2	1450/2.2	60-100
500	9×4 KW	φ900	φ1100	BLD 3-2	1450/3	60-100
1000	12×4 KW	φ1200	φ1400	BLD 4-3	1450/4	60-100
2000	15×5 KW	φ1400	φ1600	BLD 4-3	1450/4	60-100
3000	15×6 KW	φ1600	φ1800	BLD 5.5-3	1450/5.5	60-100

Steam heating stainless steel reactor

Specifications L	Inside diameter of the pot φmm	Jacket diameter φmm	Motor's kw	Reducer models	Stirring speed
Specifications L	Inside diameter of the pot φmm	Jacket diameter φmm	Motor's kw	Reducer models	r.p.m
30	400	500	0.6	BLD 0.6-1	60-100
50	500	600	0.8	BLD 0.8-1	60-100
100	550	65	1.1	BLD 1.1-1	60-100
150	600	700	2.2	BLD 2.2-2	60-100
200	650	750	2.2	BLD 2.2-2	60-100
300	800	900	3	BLD 3-2	60-100
500	900	1000	3	BLD 3-2	60-100
800	1100	1200	4	BLD 4-2	60-100
1000	1200	1300	4	BLD 4-3	60-100
1500	1300	1400	4	BLD 4-3	60-100
2000	1400	1500	5.5	BLD 5.5-3	60-100
2500	1400	1500	7.5	BLD 7.5-4	60-100
3000	1400	1500	7.5	BLD 7.5-4	60-100
3500	1400	1500	7.5	BLD 7.5-4	60-100
4000	1500	1600	7.5	BLD 7.5-4	60-100
5000	1600	1700	7.5	BLD 7.5-4	60-100
6000	1800	1900	15	BLD 15-5	60-100
18000	2000	2100	15	BLD 15-5	60-100
32000	3000	3200	37	BLD 37-56A	35-59

As production technology users, the operating conditions vary, heating patterns into electric rods Jacket heating, steam heating, HTF cycle heating, mechanical seals and sealing device packed into sealed mixing patterns are anchored, Pulp, pots wheel. Push or frame. Opening number, specifications or other requirements of users can design and production.
