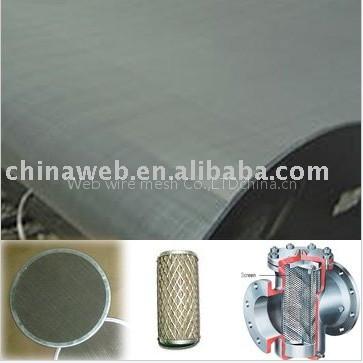

Stainless steel mesh

stainless steel wire mesh
material :202,302,304,304L,316,316L,309,310S
stainless steel wire mesh material
mainly produce :AISI302,AISI304,AISI316,
AISI309,nickel chrome alloy (2080)
stainless steel wire mesh weaving tape

plain weaving

3 mesh 4 mesh 5 mesh 6 mesh

8 mesh 10 mesh 12 mesh 14 mesh

16 mesh 18 mesh 20 mesh 22 mesh

24 mesh 26 mesh 30 mesh 40 mesh

60 mesh 80 mesh 100 mesh 120 mesh

150-300mesh

Twill weaving

20 mesh 22 mesh 24 mesh 26 mesh 30 mesh 40 mesh

60 mesh 80 mesh 100 mesh 120 mesh 150 mesh 180 mesh

200-635mesh

Three heddle weave mesh

range from 60X40,24X18,50X30,80X60mesh

Five heddle twilled weave mesh

plain dutch weave mesh

12meshX64mesh wire diameter 0.58mmX0.40mm

14mesh X 88mesh wire diameter 0.50mm X 0.33mm

24mesh X 110mesh wire diameter 0.355mm X 0.25mm

30mesh X 150mesh wire diameter 0.23mm X 0.18mm

40mesh X 200mesh wire diameter 0.18mm X 0.14mm

50mesh X 250mesh wire diameter 0.14mm X 0.11mm

twill dutch weave mesh

Mesh per Inch (Warp x Weft) Wire Diameter (Warp x Weft)

24mesh X 220mesh 0.30mm X 0.25mm

20mesh X 250mesh 0.30mm X 0.20mm

50mesh X 500mesh 0.14mm X 0.11mm

80mesh X 700mesh 0.10mm X 0.08mm

165mesh X 800mesh 0.071mm X 0.045mm

200mesh X 600mesh 0.071mm X 0.050mm

200mesh X 1400mesh 0.071mm X 0.04mm

165mesh X 1400mesh 0.071mm X 0.04mm

325mesh X 2300mesh 0.035mm X 0.025mm

400mesh X 2800mesh 0.030mm X 0.02mm
