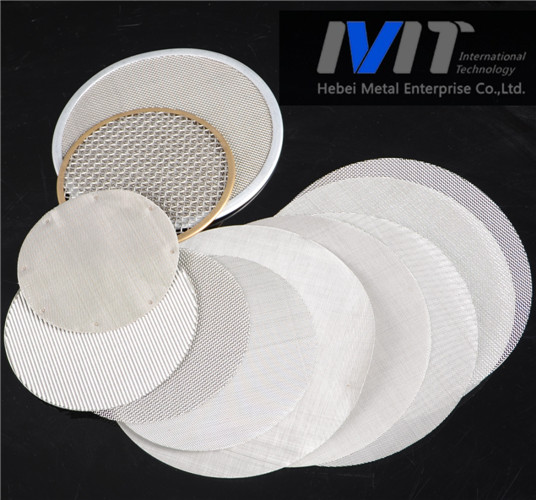

Stainless Steel Wire Mesh

Quick Details · Place of Origin: Hebei, China (Mainland) · Material: Stainless Steel Wire · Type: Wire Cloth · Application: Filters · Weave Style: Plain Weave · Wire Diameter: 0.025 - 1.0 mm · Technique: Woven · Model Number: MT - SS · Brand Name: MT · Available Material:SS304,304L,316,316L,317,321,330,347,410,430 · Mesh Opening: 2 - 650 · Mesh Width: 10cm to 130cm · Mesh Length: 30m,60m,90m, · Weaving Type: Plain,Dutch,Plain Dutch,Reverse Plain Dutch,Twill Dutch · Packing: Water proof paper inside and plastic bag · Factory experience: 20 Years · QC: ASTM Standard ISO 9000 2001 · Delivery Time: Within 25 days Packaging Details: in rools,wrapped with waterproof paper ,then covered with hession-cloth,special packing available if necessary.

Delivery Detail: within 30days MT >>The Best Stainless Steel Wire Mesh Brief Introduction of 2014 Stainless Steel Wire Mesh Materials: sus202,304,316,316L Typical Weaving Patterns: Plain Weave,Twill Weave,Dutch Weave General Use: Stainless steel wire mesh ,with its excellent resistance against acid,alikal,heat and corrosion, find extensive uses processing of oils ,chemicals food, pharmaceuticals, airspace, machine making, ect. · Product range : usually,manufactured in 30m ( up to 200) long and in width of 36 48 1m 1.2m 1.5m 2)0m etc. or cut to length panels as per clients requirement. · Packing: water-proof paper ,woven bag and also can be made as per client requirement · Weave:This type of mesh is available in Plain Weave, Twill Weave ; Plain Dutch Weave, Dutch ,Twill Weave. · Mesh counts: 1 mesh to 635 mesh. · Sample: available.

Product Specification of 2014 Stainless Steel Wire Mesh Specification List of  stainless steel wire mesh Mesh/Inch Wire Gauge(SWG) Aperture in mm 3mesh x 3mesh 14 6.27 4mesh x 4mesh 16 4.27 5mesh x 5mesh 18 3.86 6mesh x 6mesh 18 3.04 8mesh x 8mesh 20 2.26 10mesh x 10mesh 20 1.63 20mesh x 20mesh 30 0.95 30mesh x 30mesh 34 0.61 40mesh x 40mesh 36 0.44 50mesh x 50mesh 38 0.36 60mesh x 60mesh 40 0.30 80mesh x 80mesh 42 0.21 100mesh x 100mesh 44 0.172 120mesh x 120mesh 44 0.13 150mesh x 150mesh 46 0.108 160mesh x 160mesh 46 0.097 180mesh x 180mesh 47 0.09 200mesh x 200mesh 47 0.077 250mesh x 250mesh 48 0.061 280mesh x 280mesh 49 0.060 300mesh x 300mesh 49 0.054 350mesh x 350mesh 49 0.042 400mesh x 400mesh 50 0.0385 Roll width: 2'-8'
