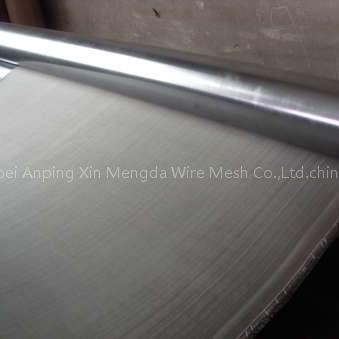

Stainless Steel Welded Wire Mesh
Specifications
- Origin
- Anping hebei
- Price Term
- FOB
Stainless Steel Welded Wire Mesh is a Safety Shoes product. Key specs — Origin: Anping hebei; Price Term: FOB.
Product Description
first class stainless steel wire materials in SUS302, 304, 316, 304L, 316L.
Typical Weaving Patterns for Stainless Steel Wire Mesh
Plain weave, twill weave, dutch weave.
General Use: Stainless steel wire mesh, with its excellent resistance against acid, alkali, heat and corrosion, find extensive uses in processing of oils, chemicals, food, pharmaceuticals, also sorting and screening of solid, liquid and gas in mine, metallurgy, airspace, machine making, etc.
We also can provide other specification according to the clients?
We accept the business of processing supply meterial
Stainless Steel Square Wire Mesh Sizes
Standard roll width of stainless steel square wire mesh: 1m to 48"
Standard roll length of stainless steel square wire mesh: 30m to 100"
If you are interested so please feel free and send inquiry to us for more details.
mesh | wire diameter | aperture | opening area | mesh weight (pound)/100square feet | ||
Inch | mm | Inch | mm | |||
60X60 | .0075 | .191 | .0092 | .23 | 30.5 | 23.7 |
60X60 | .007 | .178 | .0097 | .25 | 33.9 | 20.4 |
70X70 | .0065 | .165 | .0078 | .20 | 29.8 | 20.8 |
80X80 | .0065 | .165 | .0060 | .15 | 23.0 | 23.2 |
80X80 | .0055 | .140 | .0070 | .18 | 31.4 | 16.9 |
90X90 | .005 | .127 | .0061 | .16 | 30.1 | 15.8 |
100X100 | .0045 | .114 | .0055 | .14 | 30.3 | 14.2 |
100X100 | .004 | .102 | .0060 | .15 | 36.0 | 11.0 |
100X100 | .0035 | .089 | .0065 | .17 | 42.3 | 8.3 |
110X110 | .0040 | .1016 | .0051 | .1295 | 30.7 | 12.4 |
120X120 | .0037 | .0940 | .0064 | .1168 | 30.7 | 11.6 |
150X150 | .0026 | .0660 | .0041 | .1041 | 37.4 | 7.1 |
160X160 | .0025 | .0635 | .0038 | .0965 | 36.4 | 5.94 |
180X180 | .0023 | .0584 | .0033 | .0838 | 34.7 | 6.7 |
200X200 | .0021 | .0533 | .0029 | .0737 | 33.6 | 6.2 |
250X250 | .0016 | .0406 | .0024 | .0610 | 36.0 | 4.4 |
270X270 | .0016 | .0406 | .0021 | .0533 | 32.2 | 4.7 |
300X300 | .0051 | .0381 | .0018 | .0457 | 29.7 | 3.04 |
325X325 | .0014 | .0356 | .0017 | .0432 | 30.0 | 4.40 |
400X400 | .0010 | .0254 | .0015 | .370 | 36.0 | 3.3 |
500X500 | .0010 | .0254 | .0010 | .0254 | 25.0 | 3.8 |
635X635 | .0008 | .0203 | .0008 | .0203 | 25.0 | 2.63 |
We hope you kindly enquiry,if you want to get the quotation,please offer the specifications.
thanks!
